Article ID Code:GK-HP-03
1. Identify the Problem

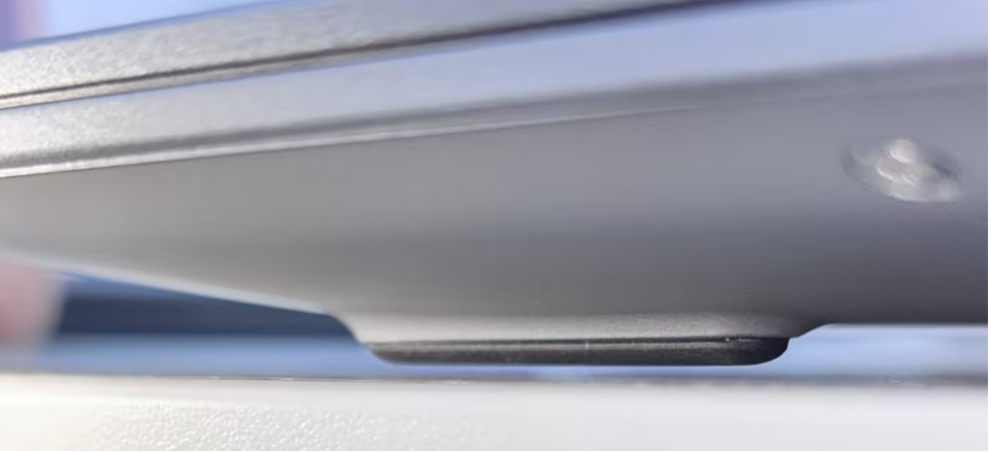

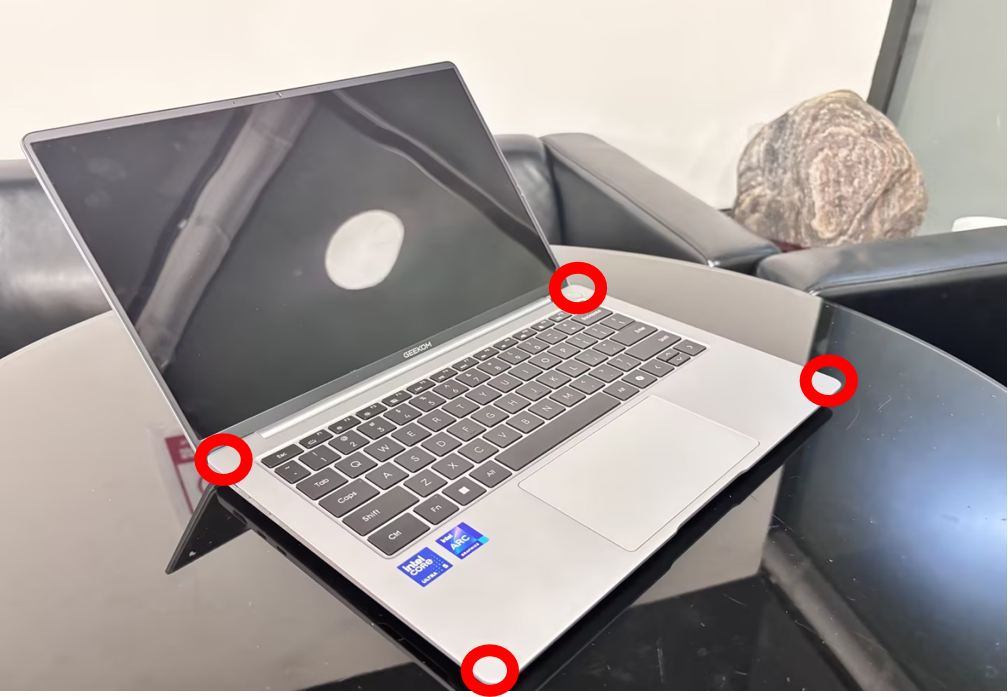

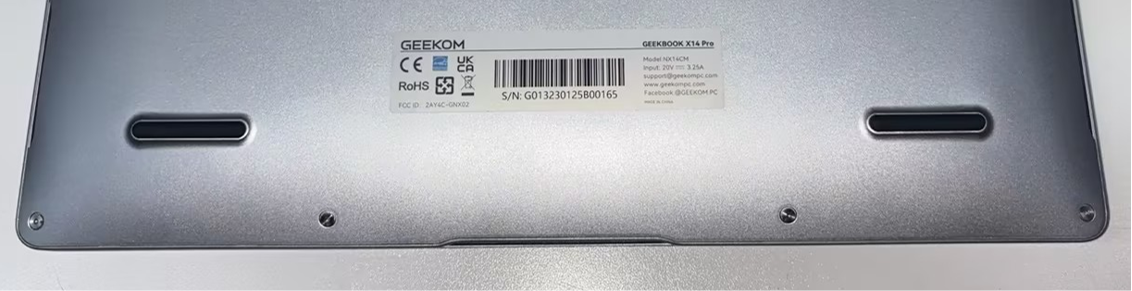

Place the laptop on a flat horizontal surface, gently press the four positions on the body with your index finger (as shown by the red circles in Figure 1) to find the footpad that is suspended off the ground. Due to the different shapes of the footpads, the footpad on one side that is off the ground is generally one of the two short footpads (as shown in Figure 2). Figure 3 shows the footpad off the ground on a defective machine.
|
Figure 1 |
Figure 2 |
|
Figure 3 |
2. Manual Correction

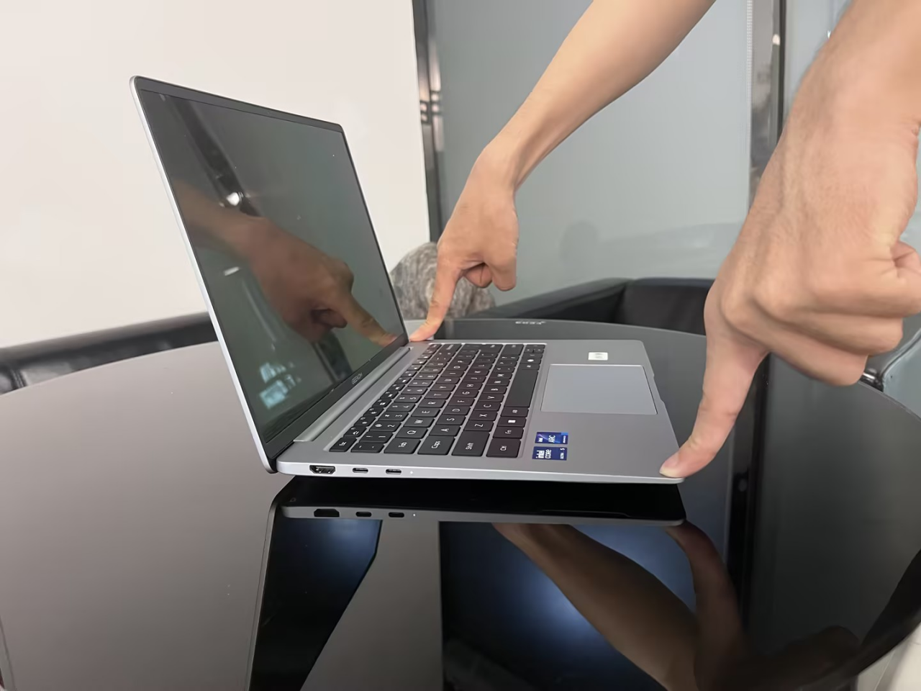

After finding the footpad off the ground in step 1, use your index fingers on both hands to press the opposite corners of the machine with some force and hold for about ten seconds before releasing (as shown in Figure 1).
Figure 1
3. Check the Effect

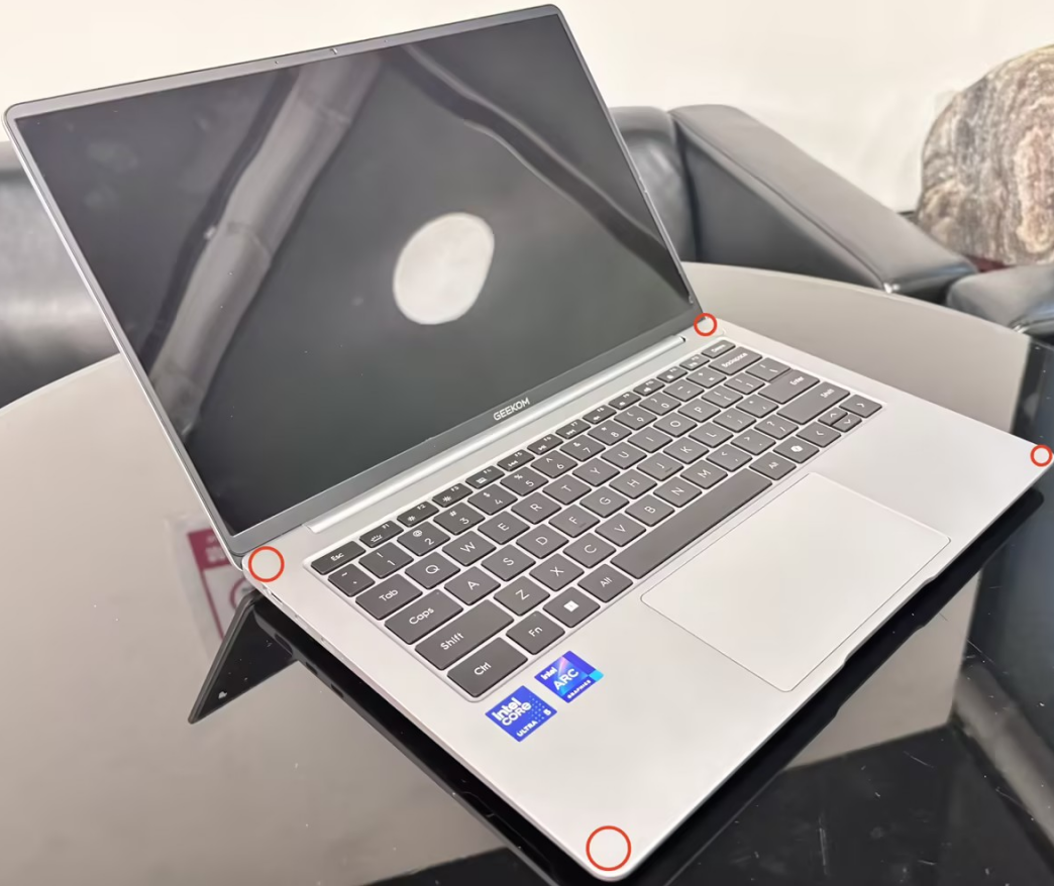

Place the laptop back on the table and press the four points shown to observe whether the machine still wobbles, as shown in Figure 2.
After manual adjustment, open the LCD to 120° and press the four points
Figure 2
4. Repeat Correction
If it still wobbles, repeat steps 2 and 3 until the machine is stable and does not wobble.
5. Video Demonstration
https://service.geekompc.com/wp-content/uploads/2026/04/latop-video.mp4
