Advanced BIOS Menu Enabled

Article ID Code:GK-BIOS-01

Default BIOS Menu	Advanced BIOS Menu

Instructions for Entering the BIOS Menu

• Under normal circumstances, the BIOS menu can only be accessed during startup or reboot; it cannot be operated after the operating system has loaded.

• The window to enter the BIOS lasts only a few seconds, so it is necessary to immediately and repeatedly press the shortcut key (Del/Delete key) after pressing the power or restart button, until the GEEKOM logo disappears.

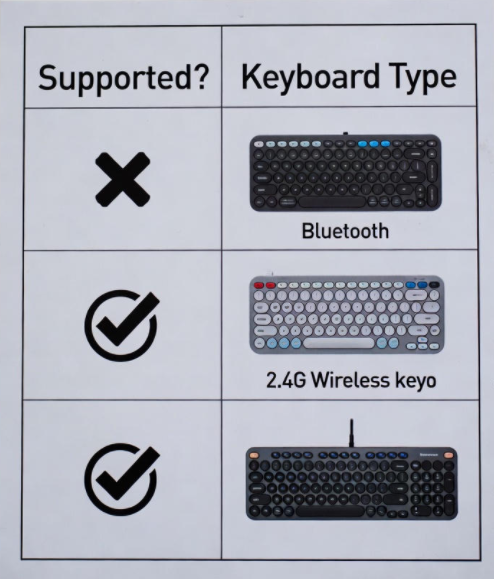

• Bluetooth functionality relies on the Bluetooth drivers within the operating system, so a Bluetooth keyboard cannot be used to operate the BIOS menu. It is recommended to use a wired keyboard or a 2.4G wireless keyboard.



Entering the advanced BIOS menu varies by model, and the method to enable it differs accordingly.

Unlock BIOS via Utility Program (supports most models)

• Model:IT11、IT12、IT13、XT12 Pro、XT13 Pro、GT12 Pro、GT13 Pro、A5、A6、A7、A8、AX7 Pro、AX8 Pro、AE7、AE8、IT15、GT1 Mega、GT2 Mega、XT1 Mega、IT1 Mega、Air11、Air12 Lite
• For unlock tool download and usage, please click this link: https://service.geekompc.com/faq/bios-unlock-tool-user-guide/

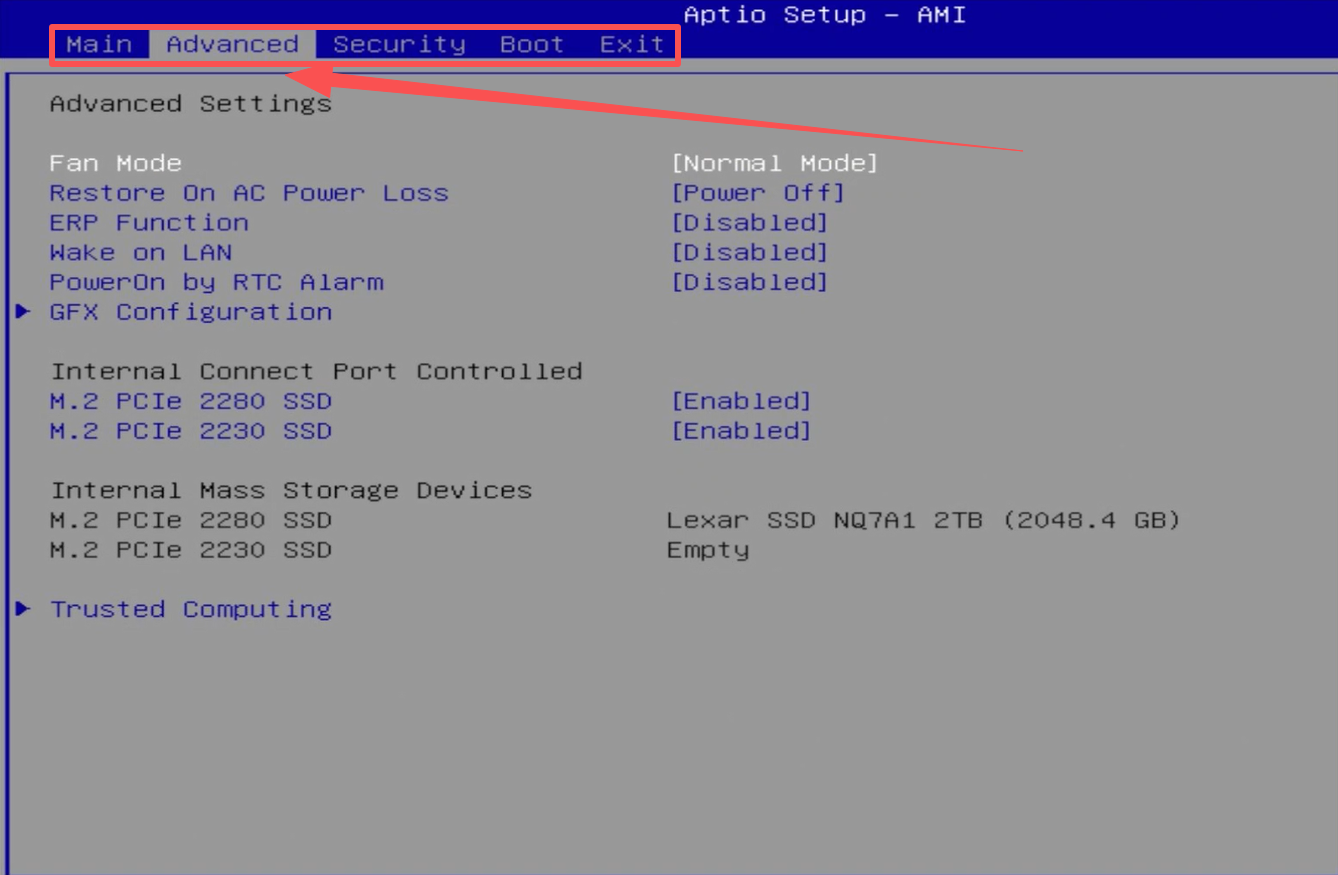

• Taking the GT2 Mega as an example, use the unlock tool to enter Advanced BIOS Mode.

Unlock BIOS via Shortcut Key (supported by some models)

• Model:A9 Max、Air12（N150）

  Unlock Method:When restarting, hold down Ctrl , then repeatedly press the  H key to enter the advanced mode of the BIOS menu.

• Model:A8 Max、AX8 Max、AE8 Max

  Unlock Method:When restarting, hold down Ctrl + H, then repeatedly press the Del/Delete key to enter the advanced mode of the BIOS menu.

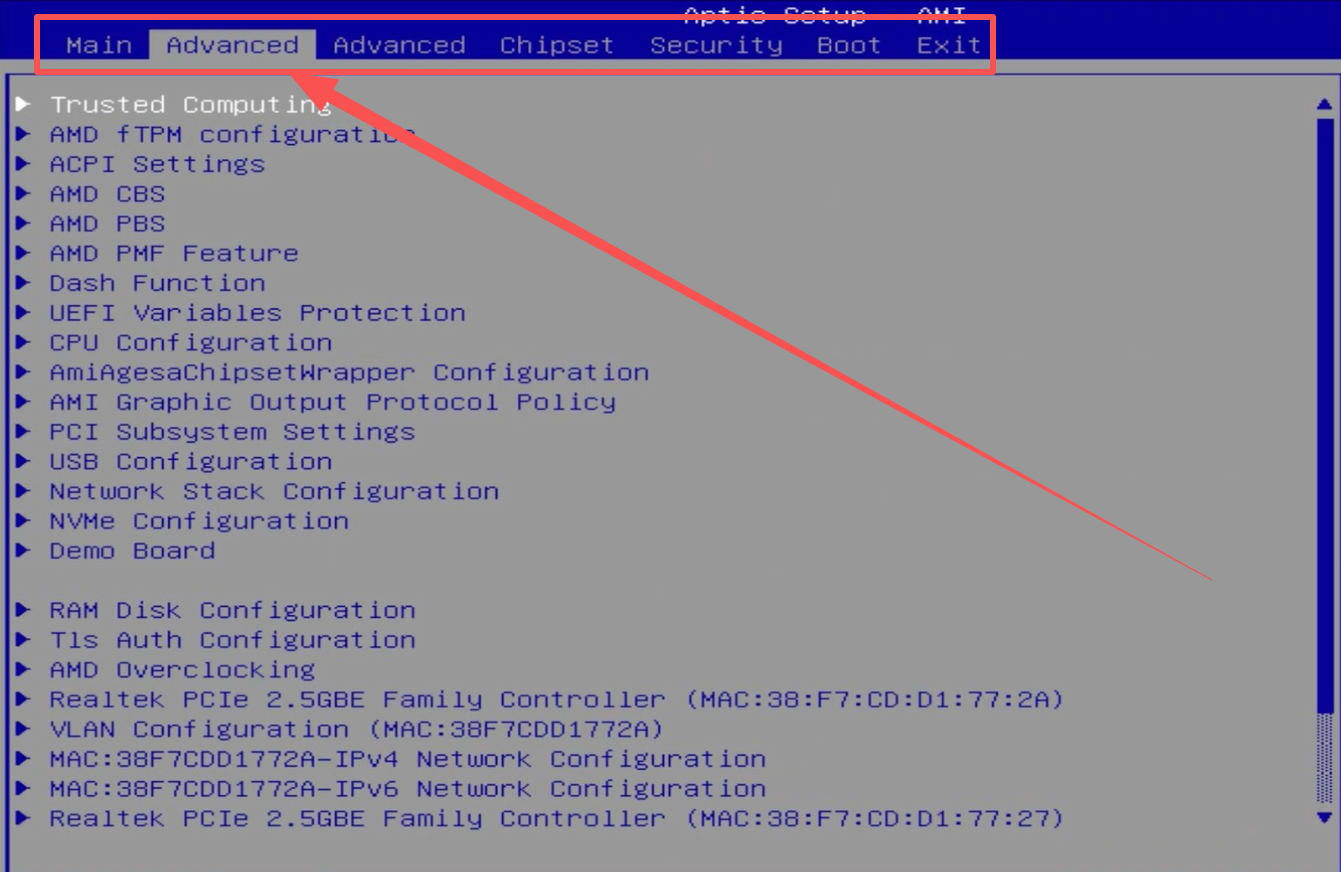

  Taking the A8 Max as an example, use the unlock tool to enter Advanced BIOS Mode.
