BIOS version: 3.2

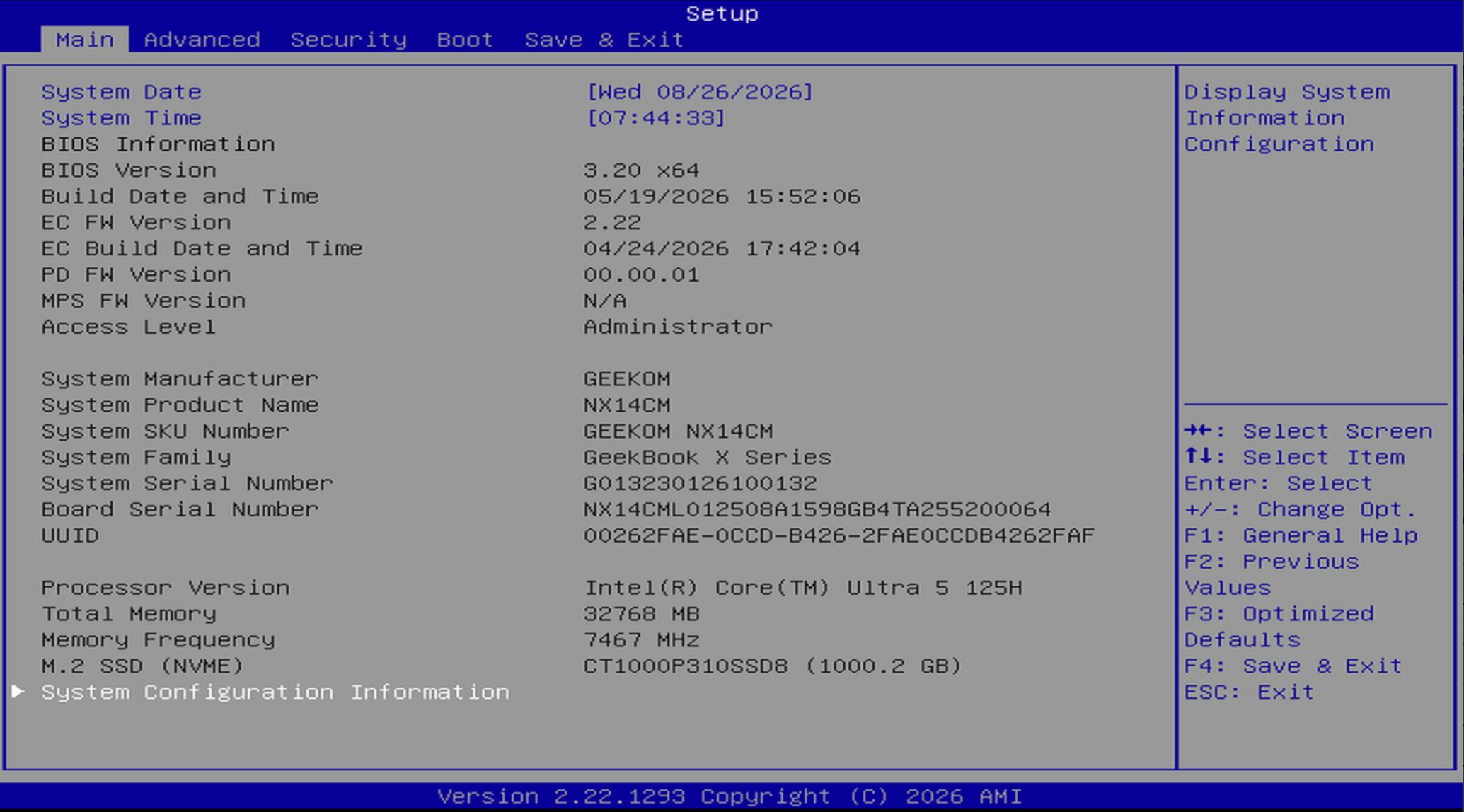

Main Tab

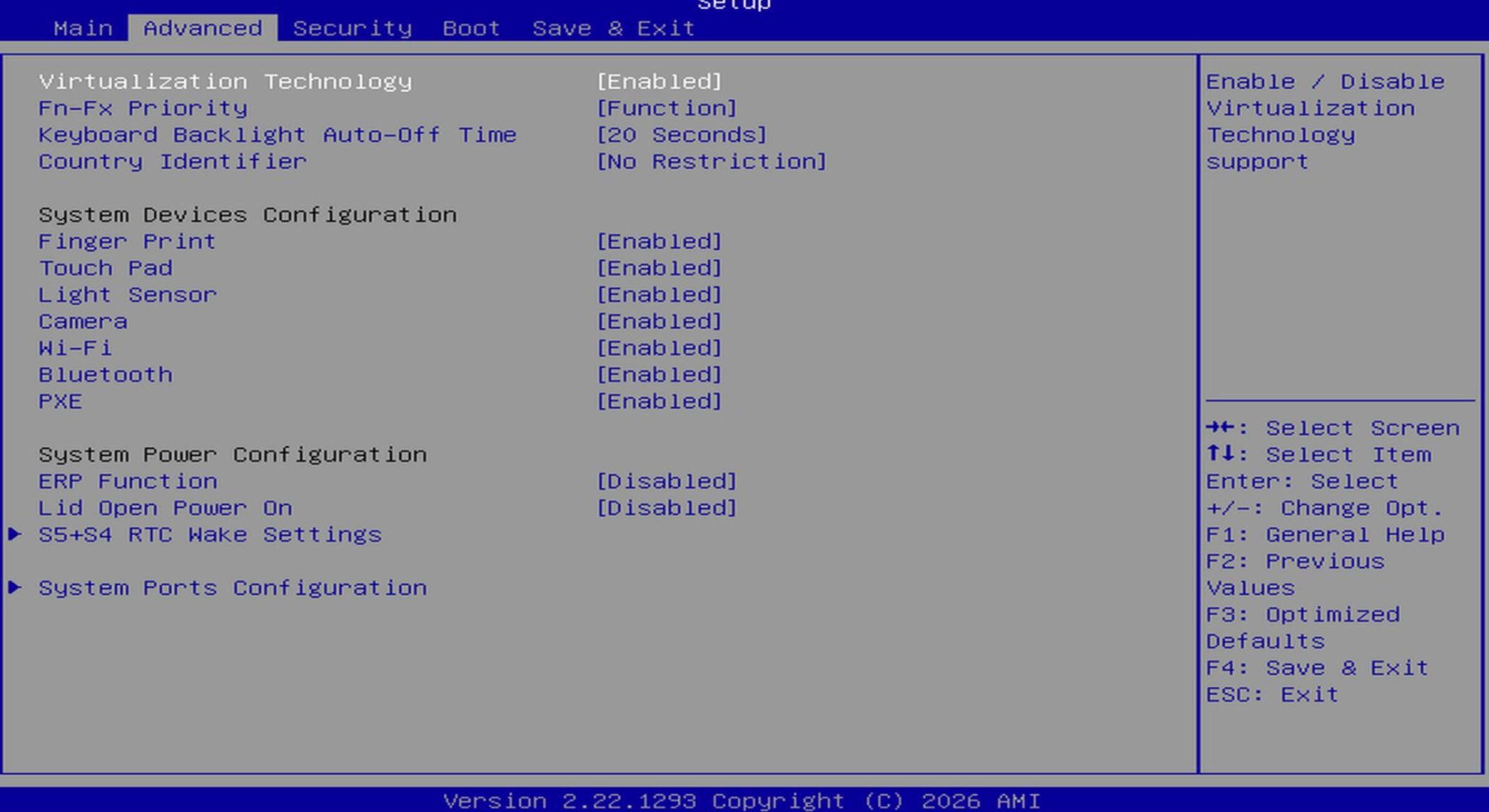

Advance Tab
Default mode

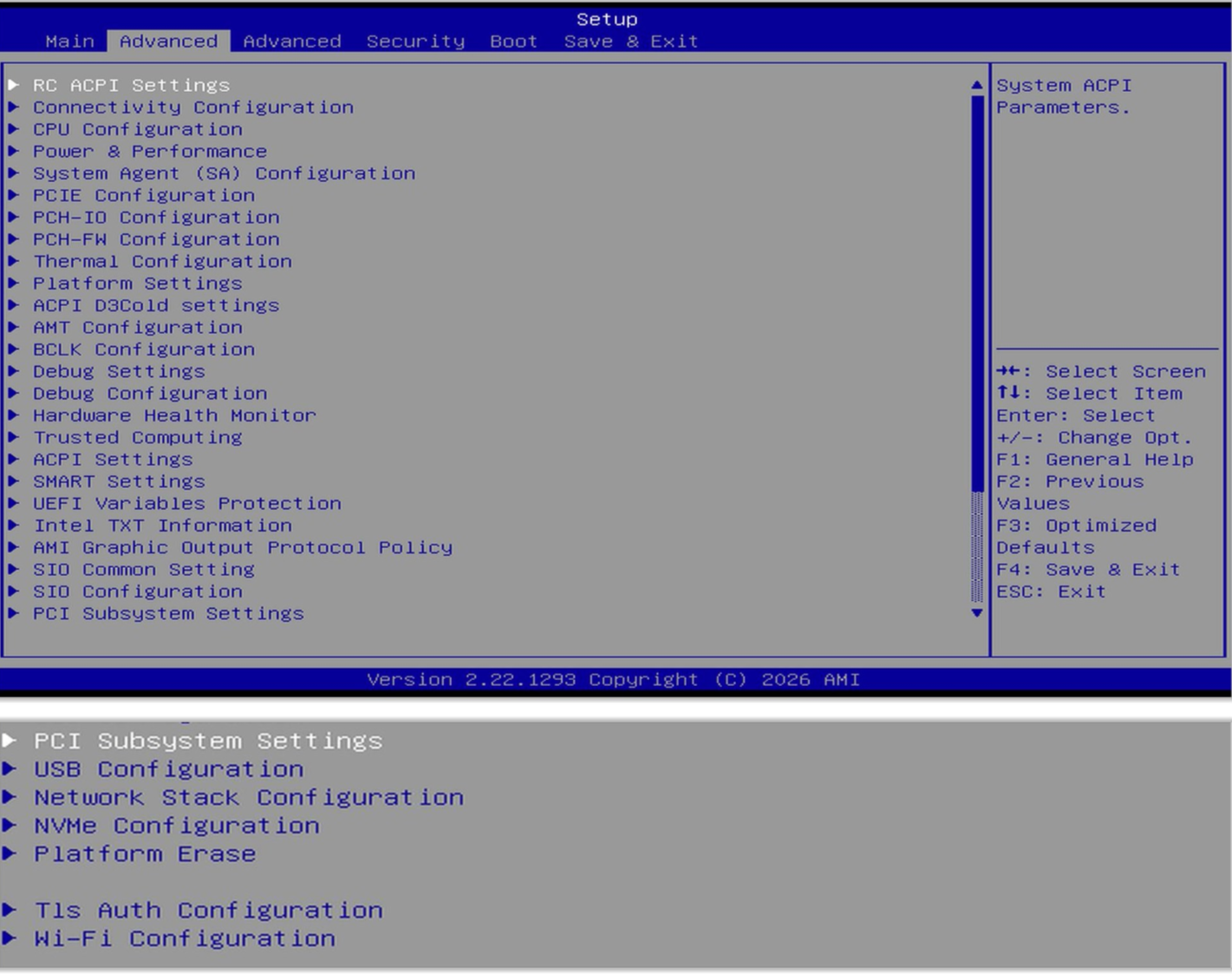

Full‑display mode:
Unlock Method:When restarting, hold down Ctrl , then repeatedly press the H key to enter the advanced mode of the BIOS menu.
Security Tab
Boot Tab

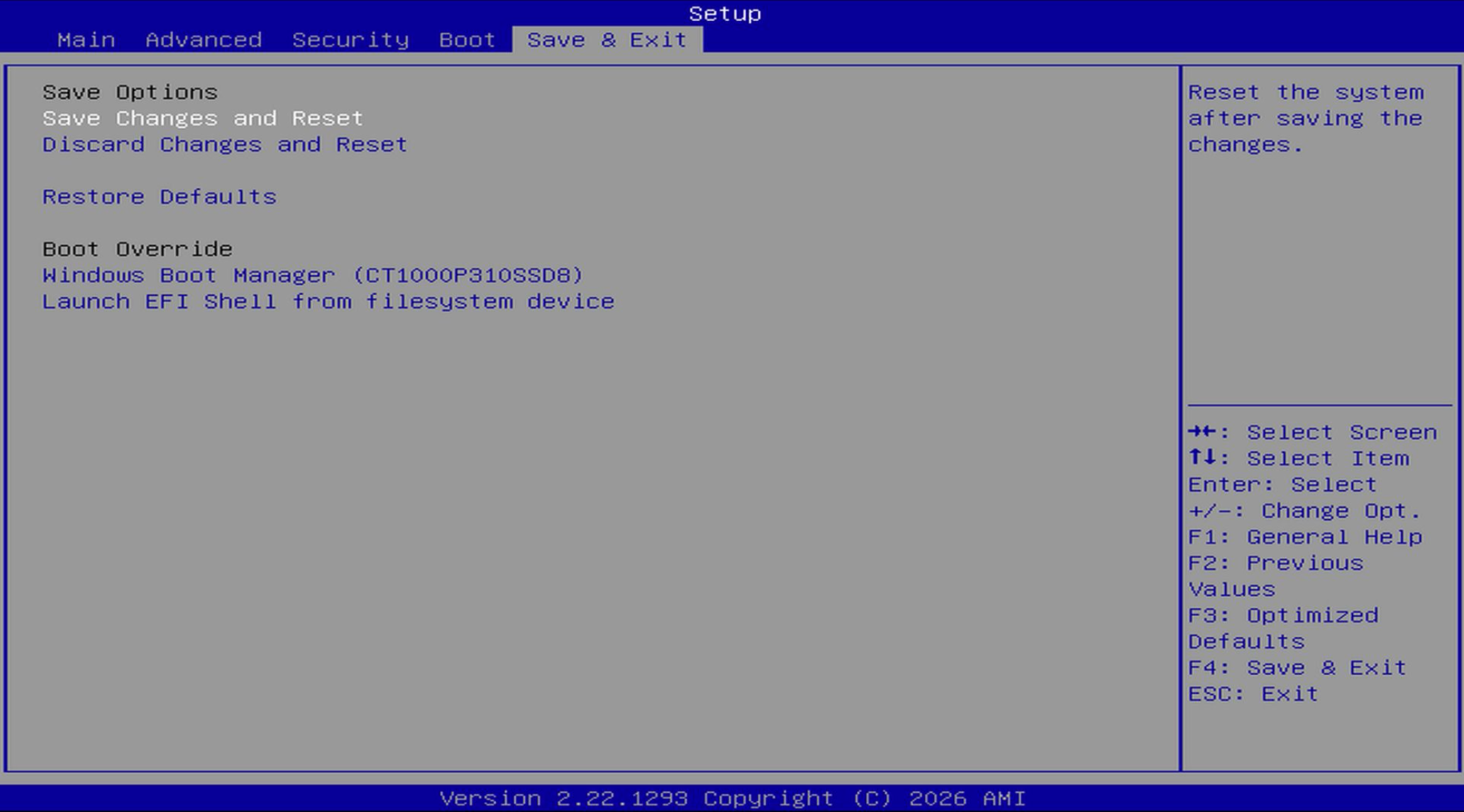

Save & Exit Tab
FN Hotkey setting
- Default: F1~F12 function keys
- Can be switched to hotkey‑only mode

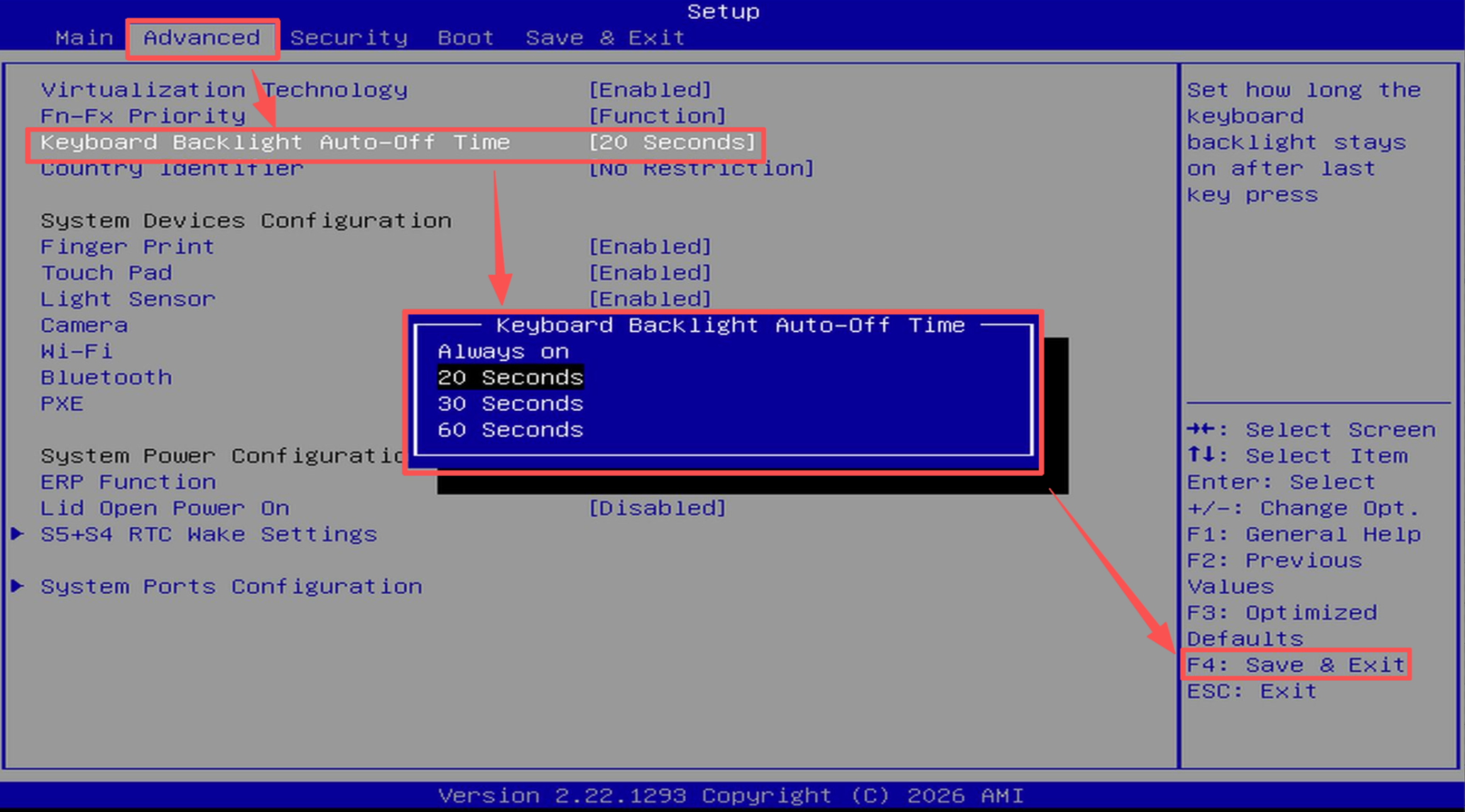

Keyboard Backlight Timeout Setting

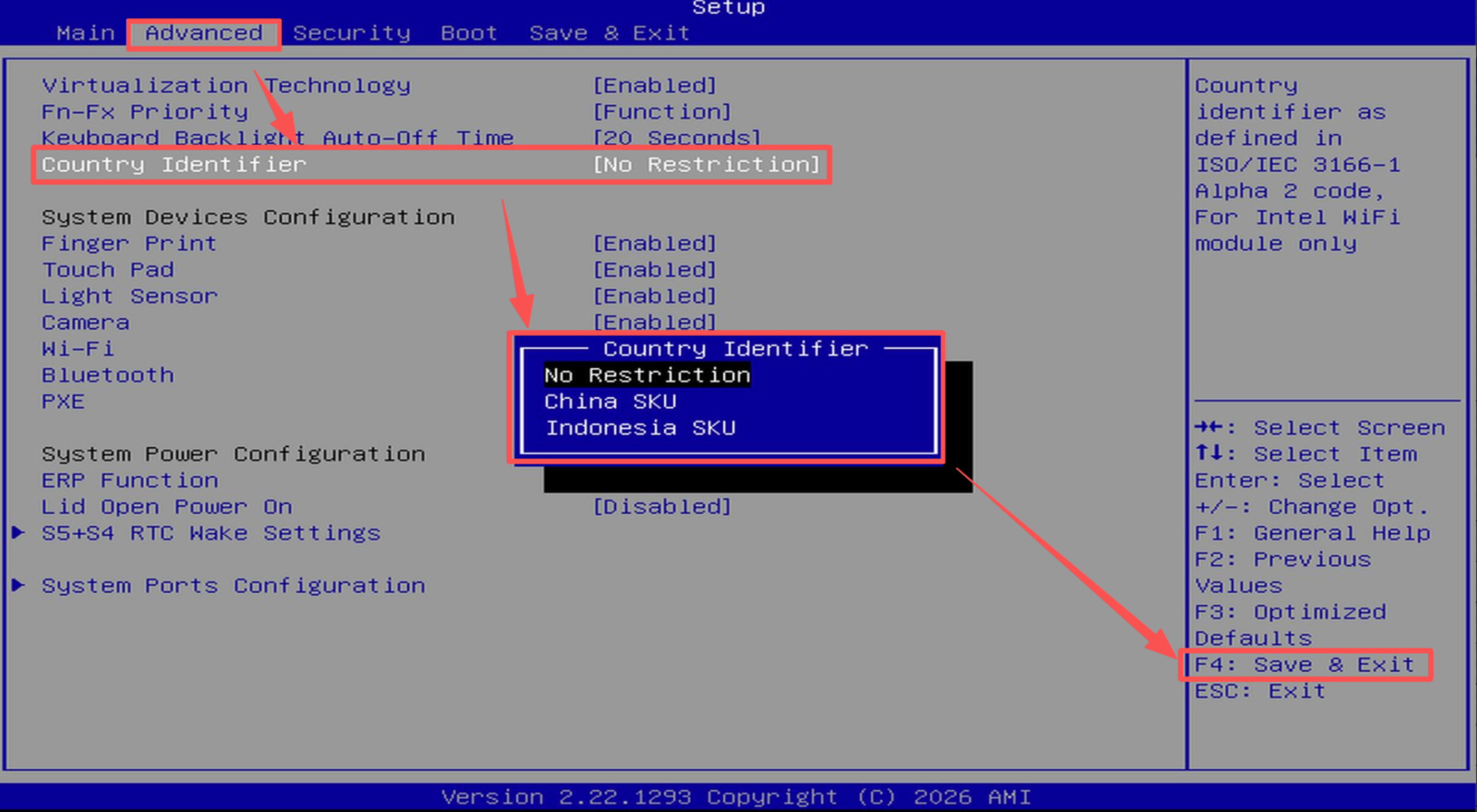

Region Detection Restriction

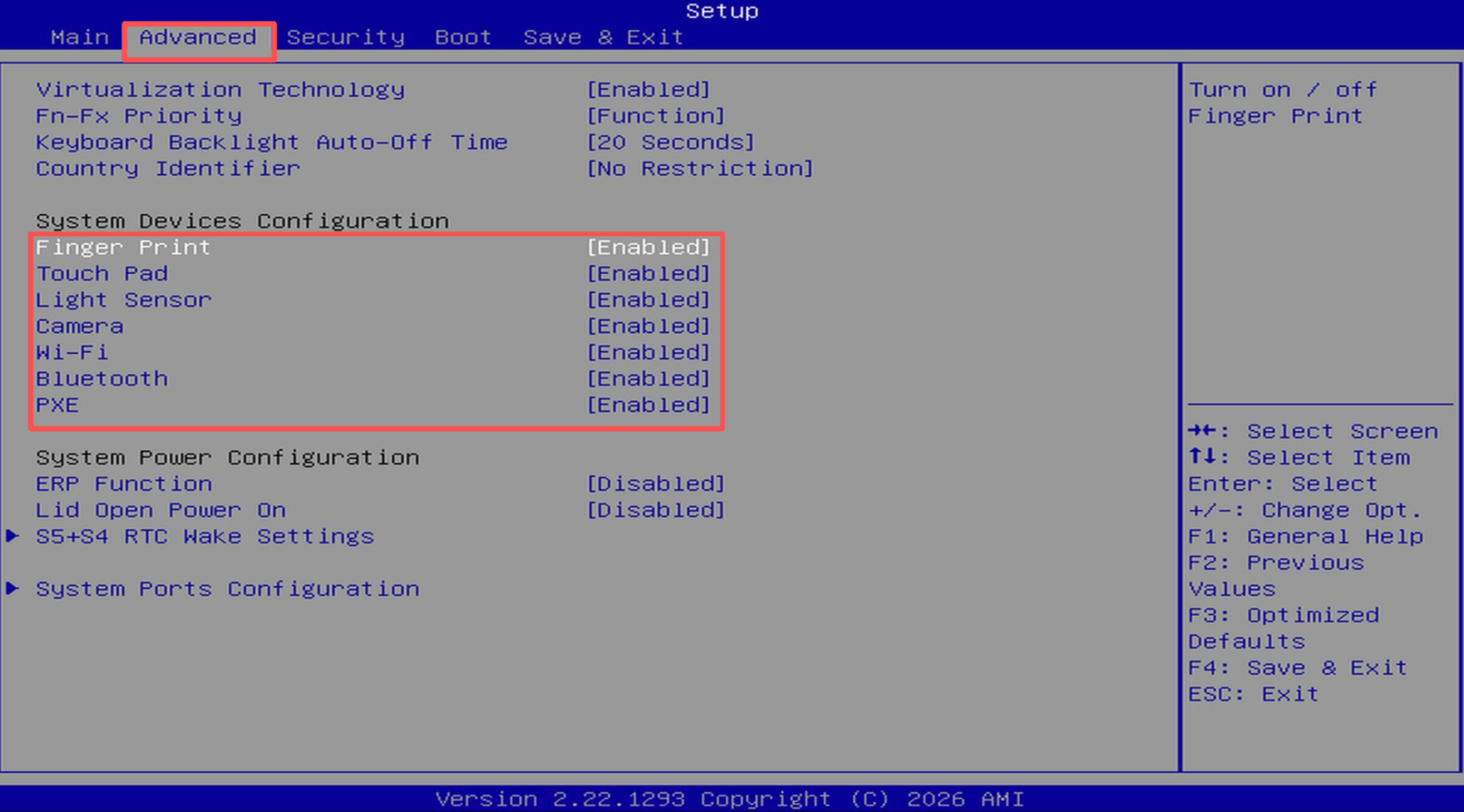

General Hardware Function Switches
(Fingerprint, Touchpad, Ambient Light Sensor, Camera, Wi‑Fi, Bluetooth, PXE Remote Boot)

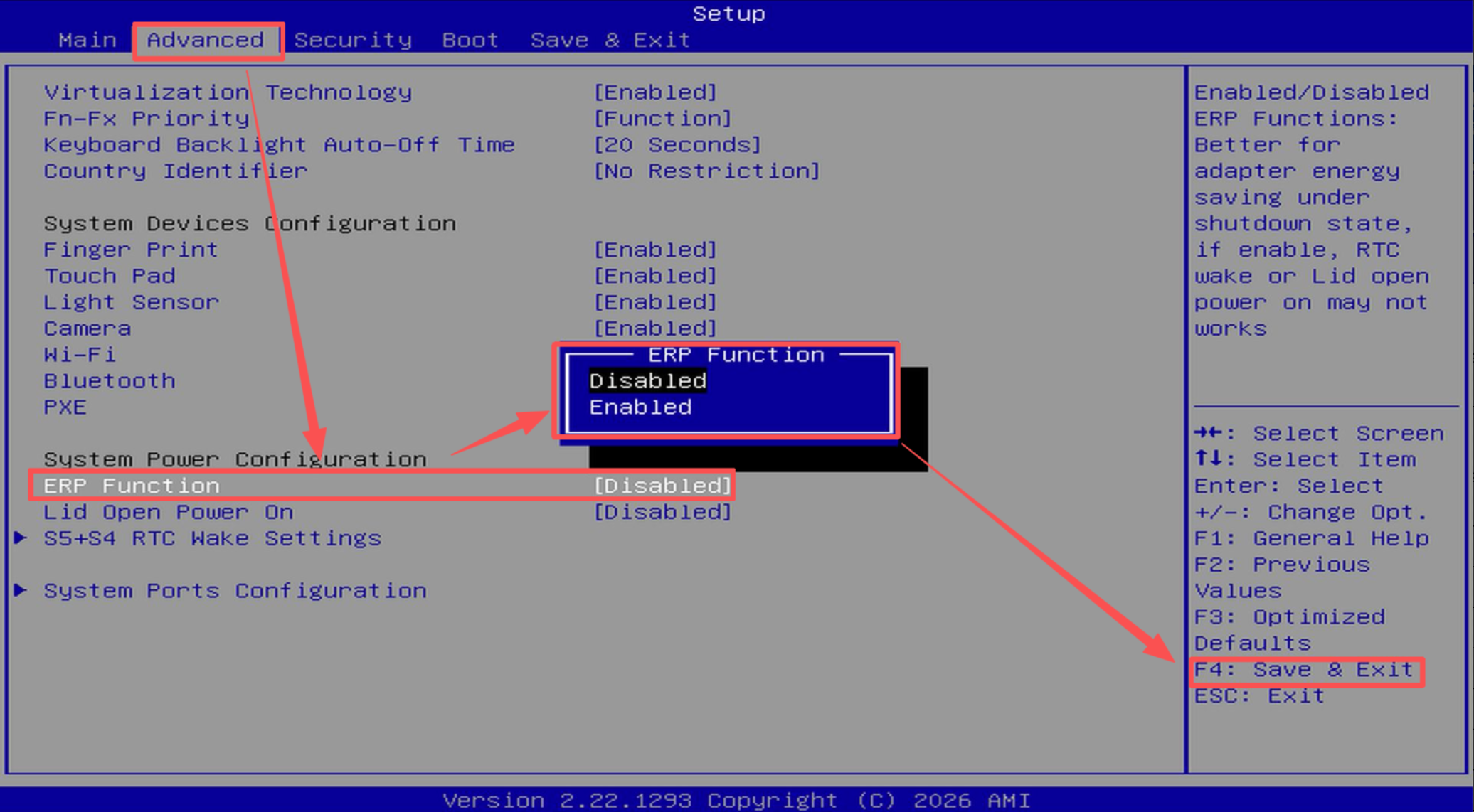

ERP setting
Default: Disable

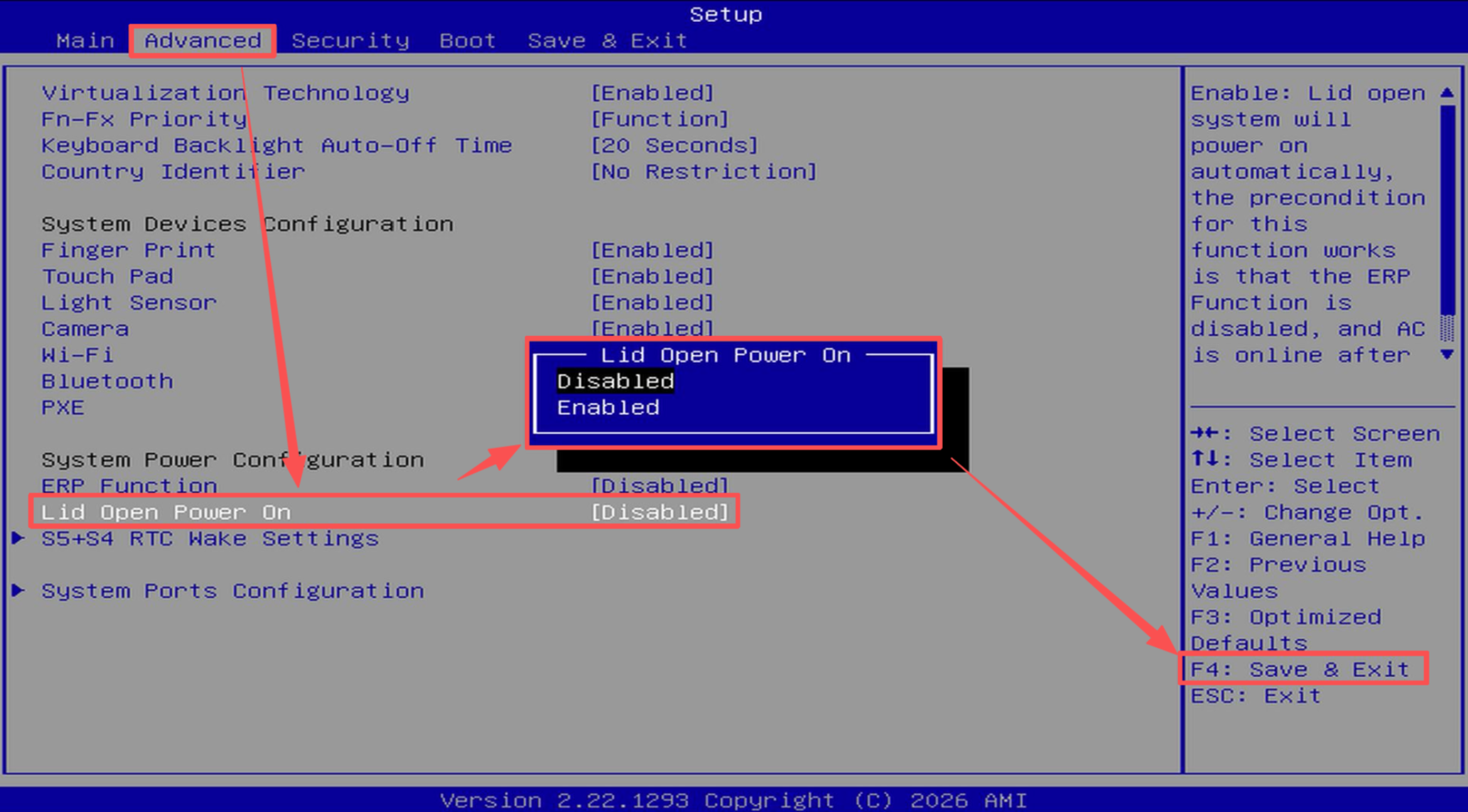

Lid Open Power‑on
Default: Disable
Power‑on Auto Start
Default: Disable
Not supported by default. Support will be added in future updates.

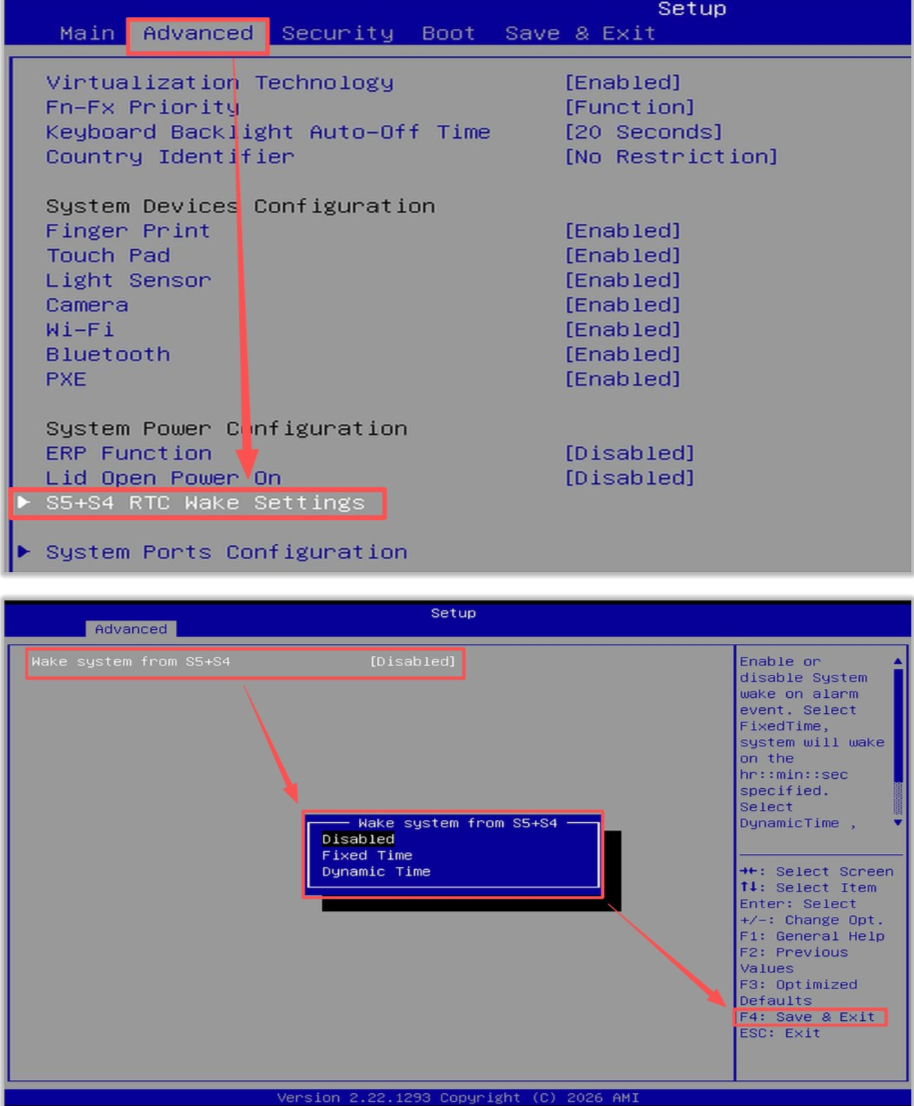

RTC Wake Setting
Default: Disable

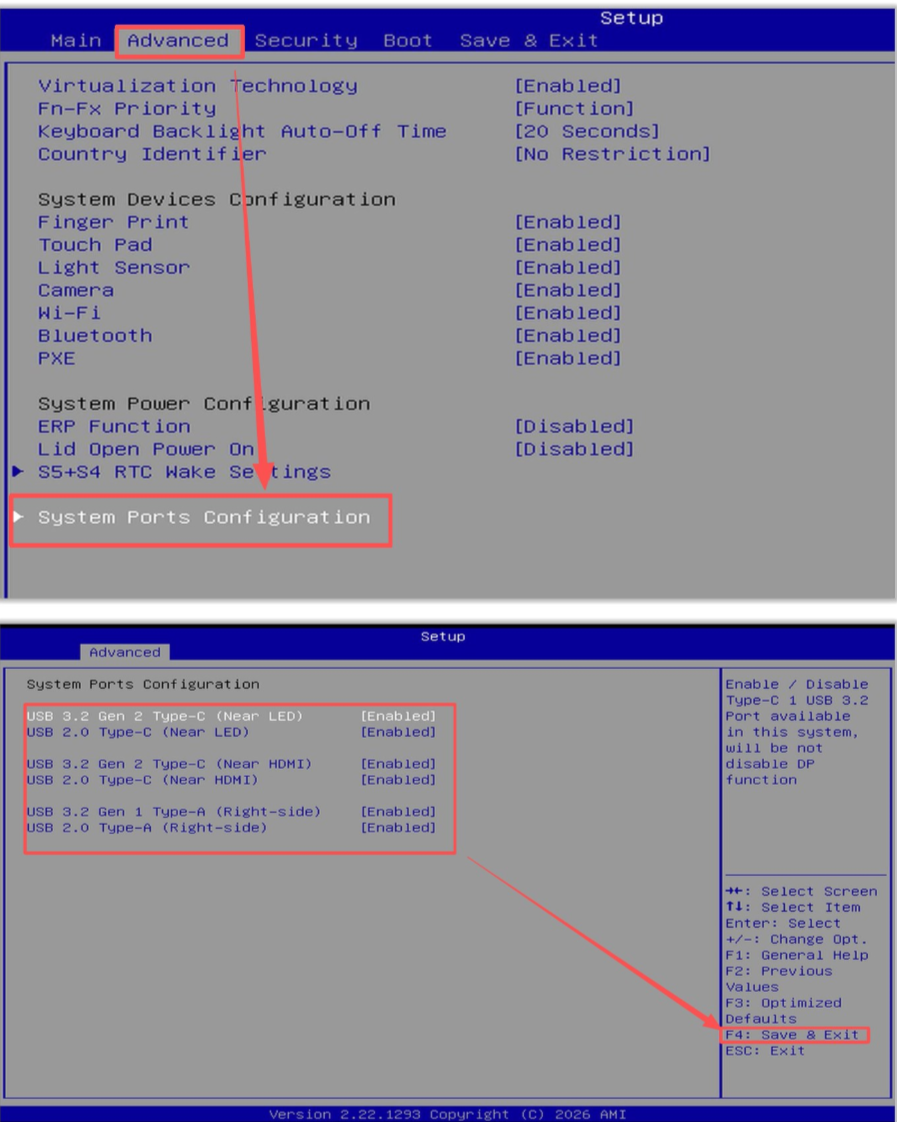

Side Port Switches
Default: All Enabled

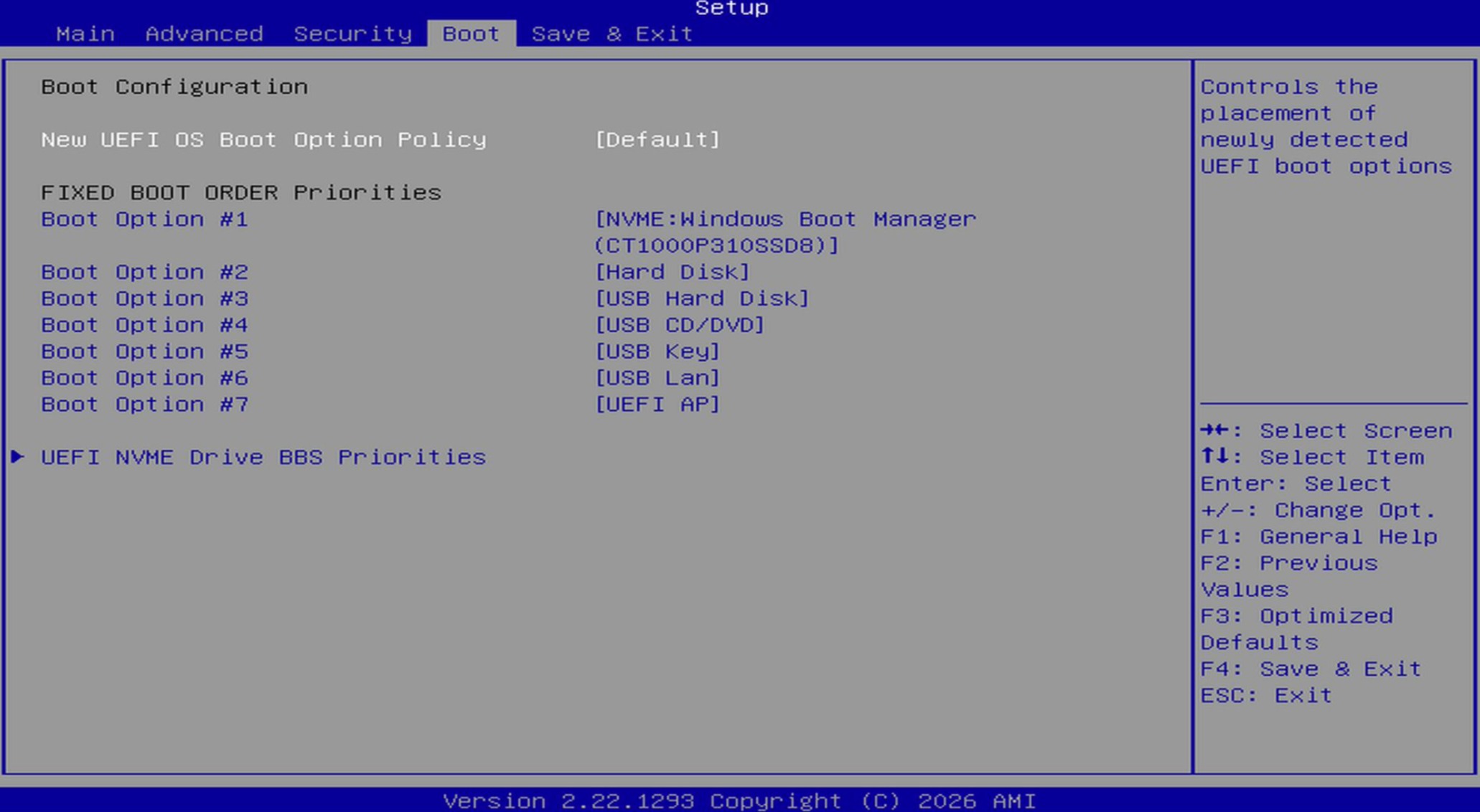

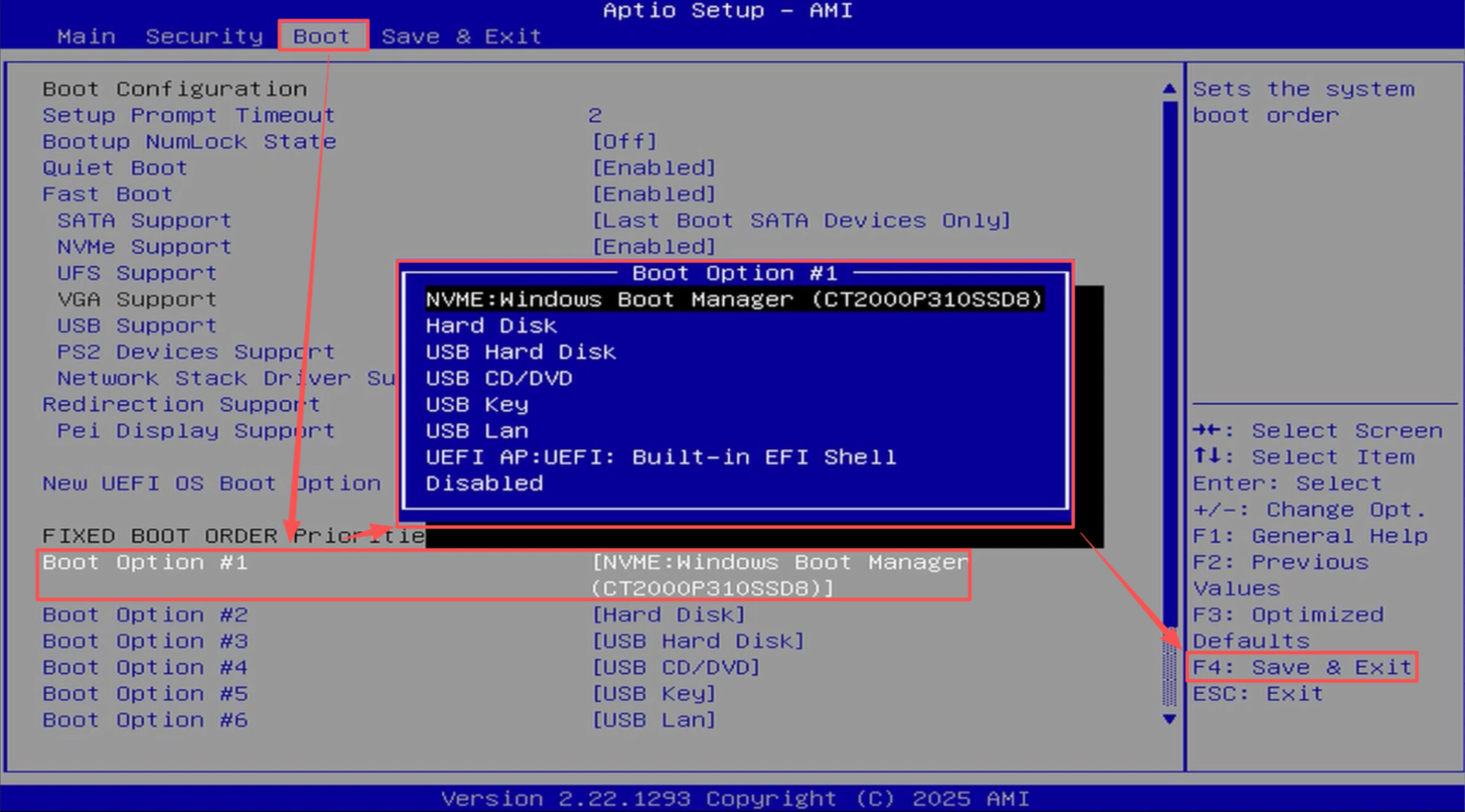

Boot Priority
Default: System Drive

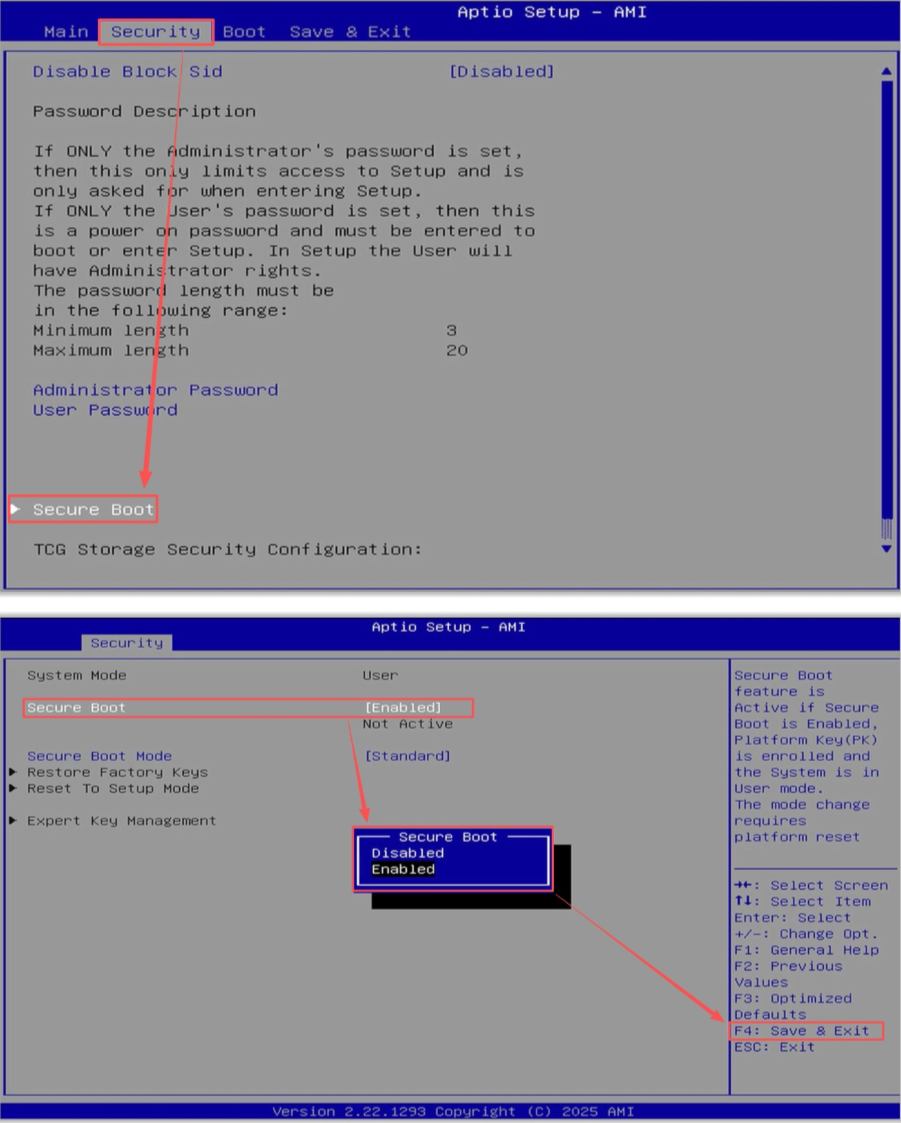

Secure Boot
Default: Enabled
Wake‑on‑LAN
Default: Enable
Fan Speed
Not adjustable in BIOS.
Fan speed can be adjusted via FN+P hotkey within OS, accompanied by corresponding CPU performance changes.
Default — Balanced Mode
Quiet Mode — Lower fan speed
Performance Mode — Higher fan speed

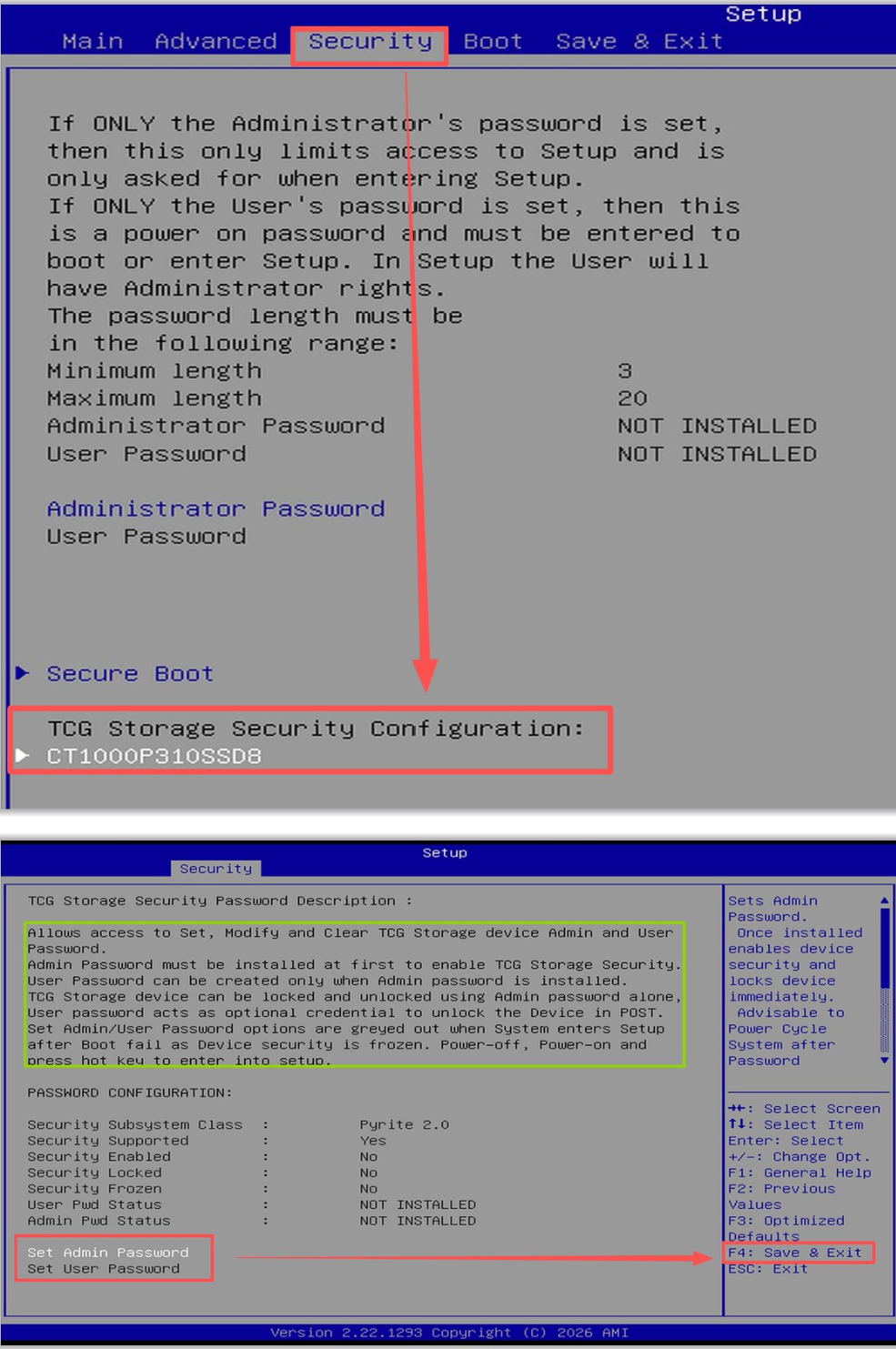

Hard Disk Password
Default: Disable

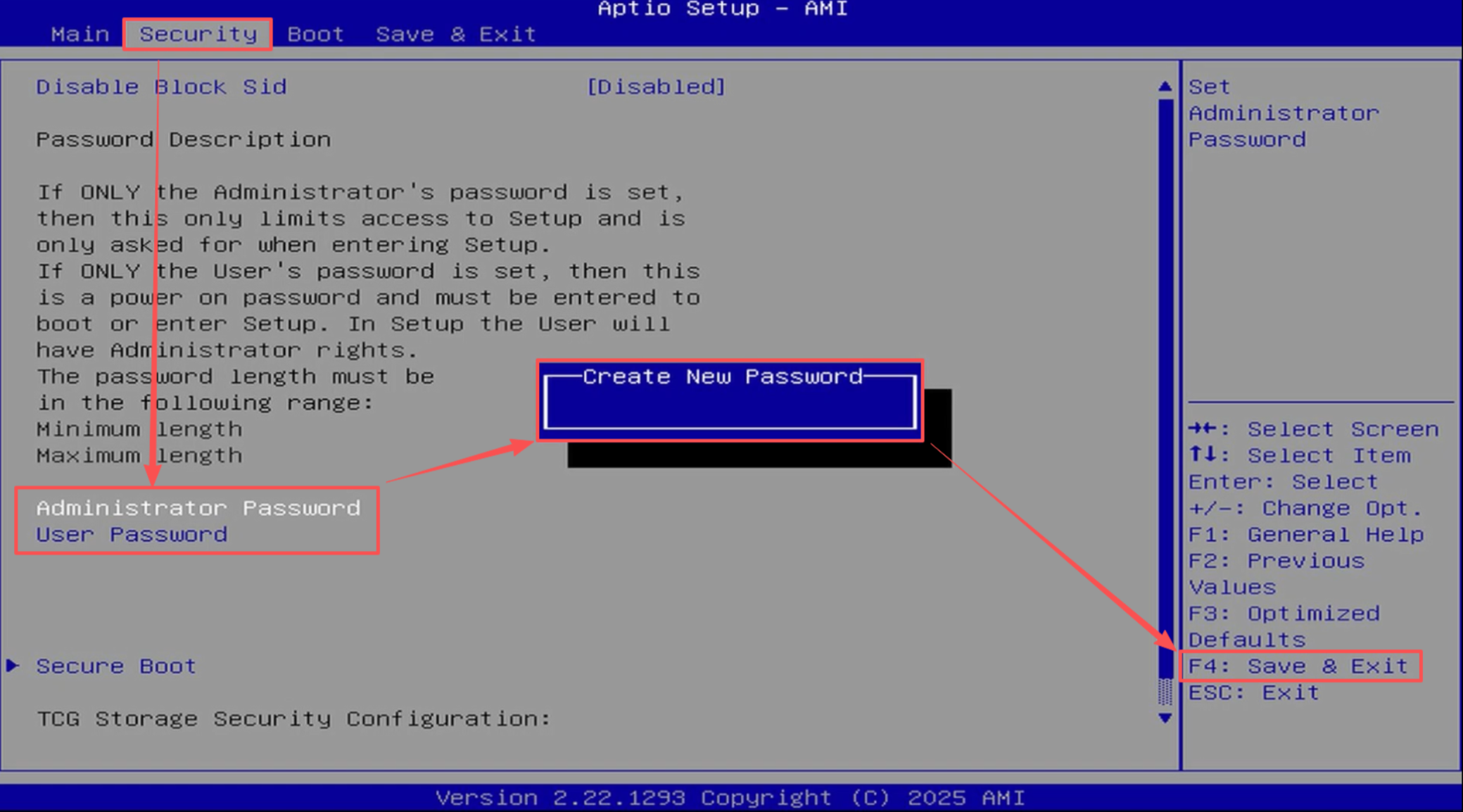

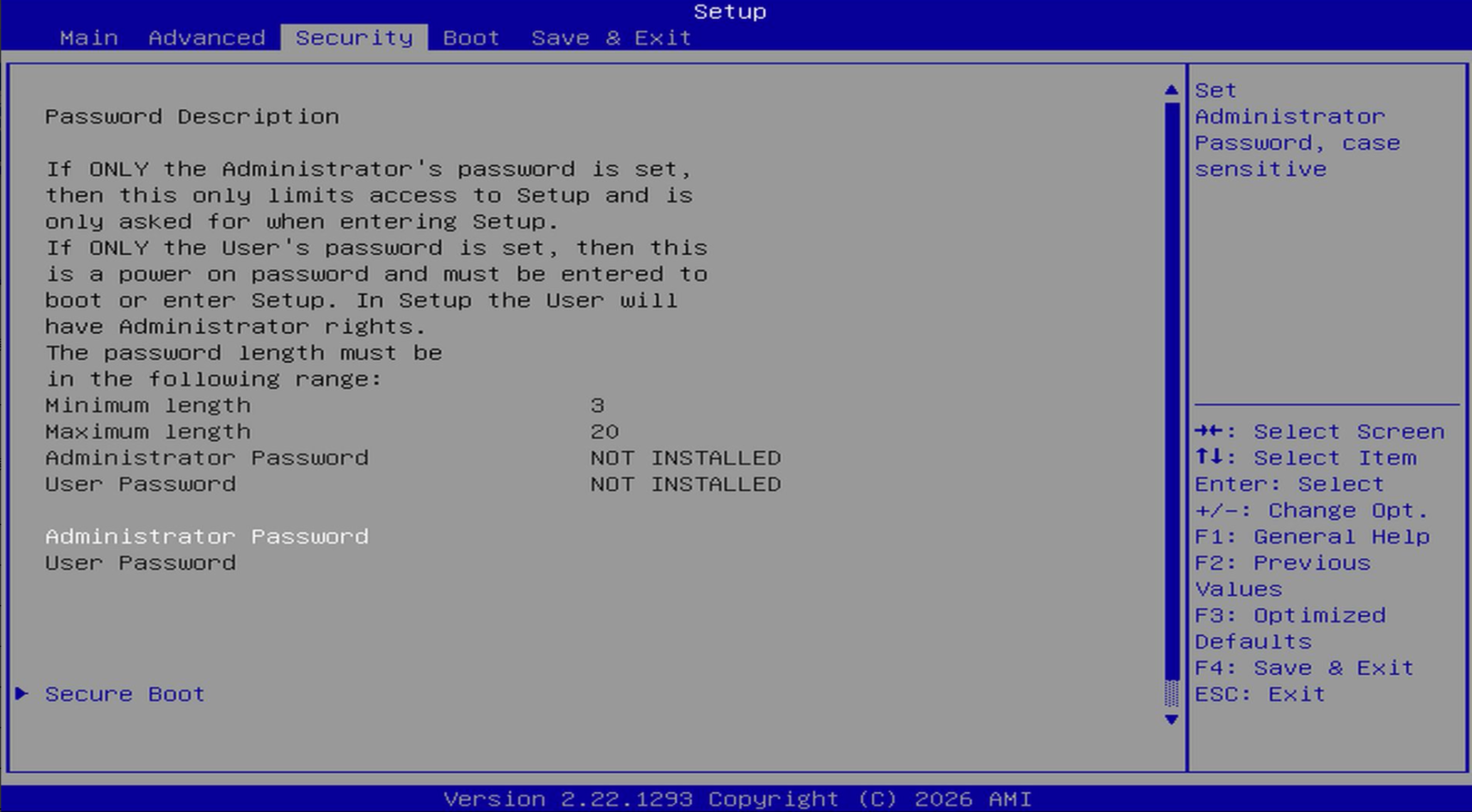

Set BIOS Password
Default: Disable
Default Shared Memory Size Setting
Not supported
