| X16: 1.14 | M16: 1.16 |

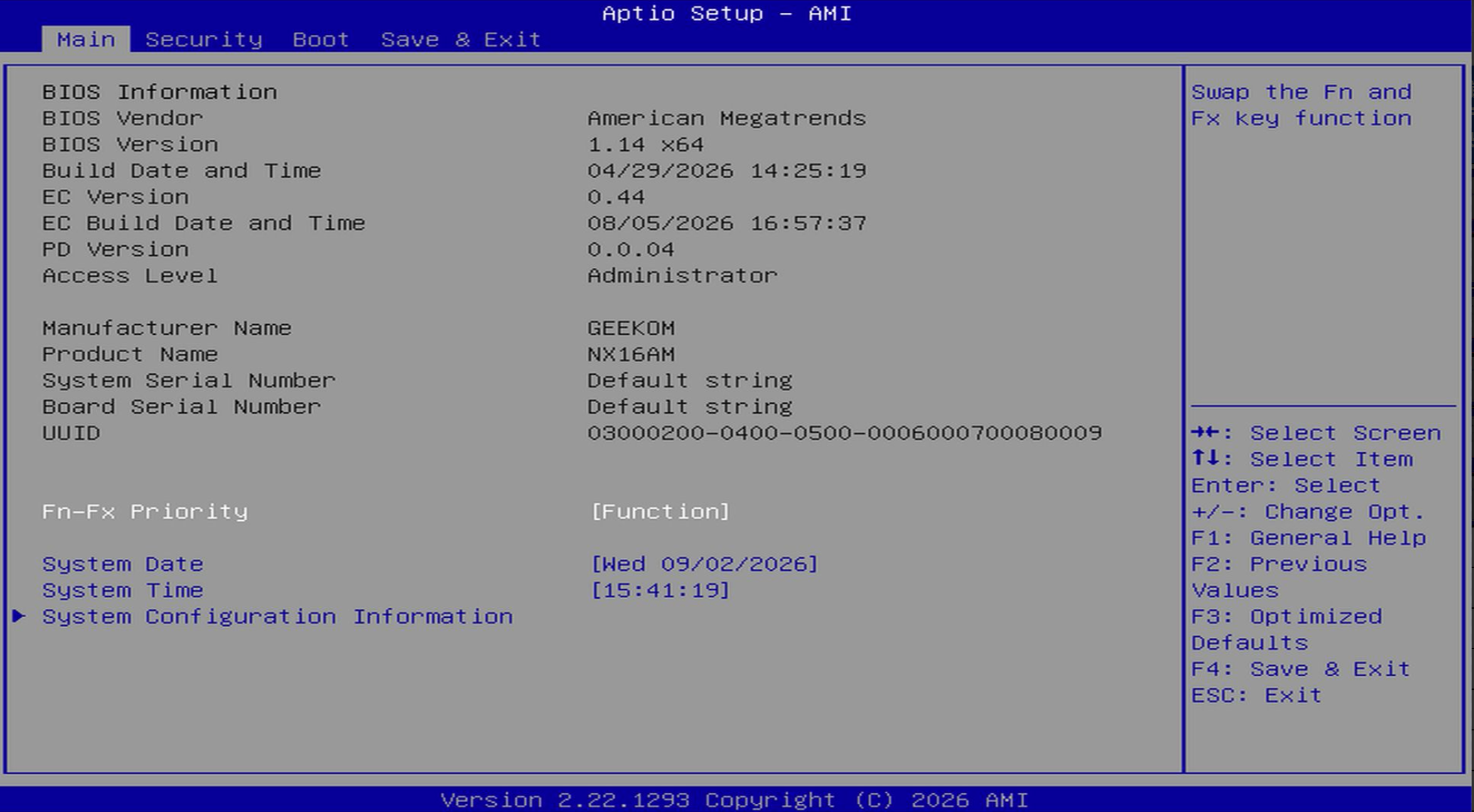

Main Tab

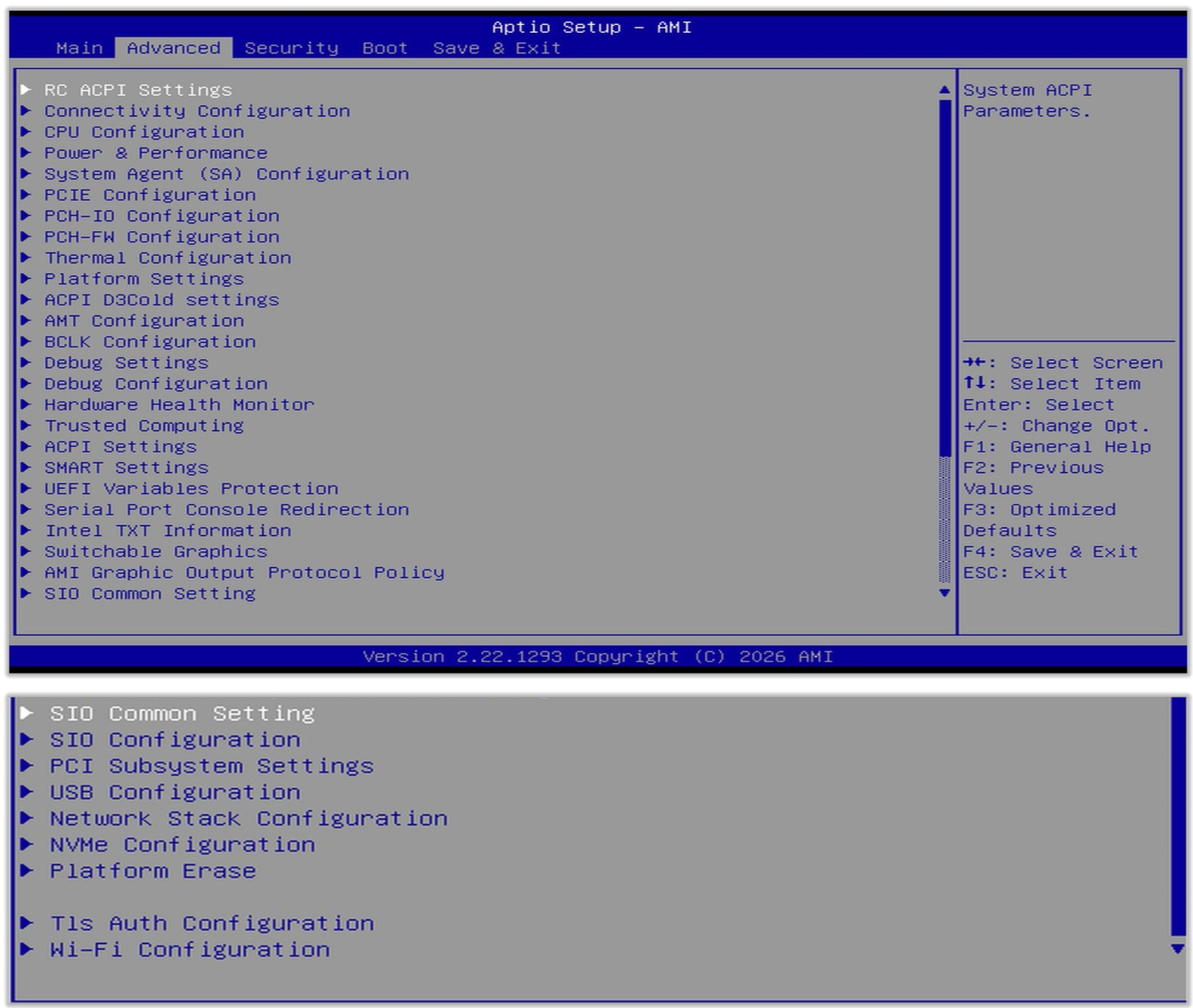

Advance Tab
No Advanced tab in Default Mode
Unlock Method:When restarting, hold down Ctrl , then repeatedly press the H key to enter the advanced mode of the BIOS menu.

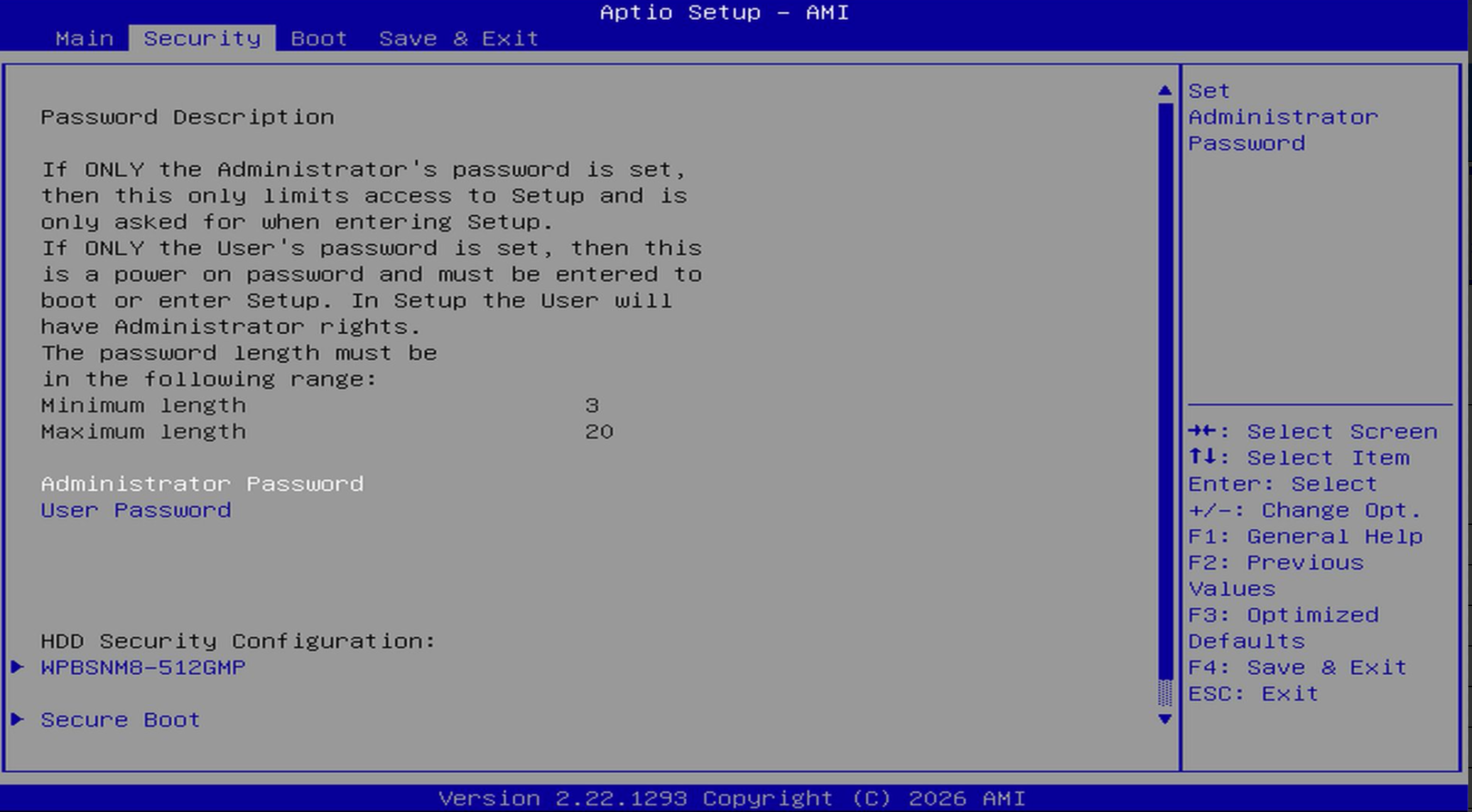

Security Tab

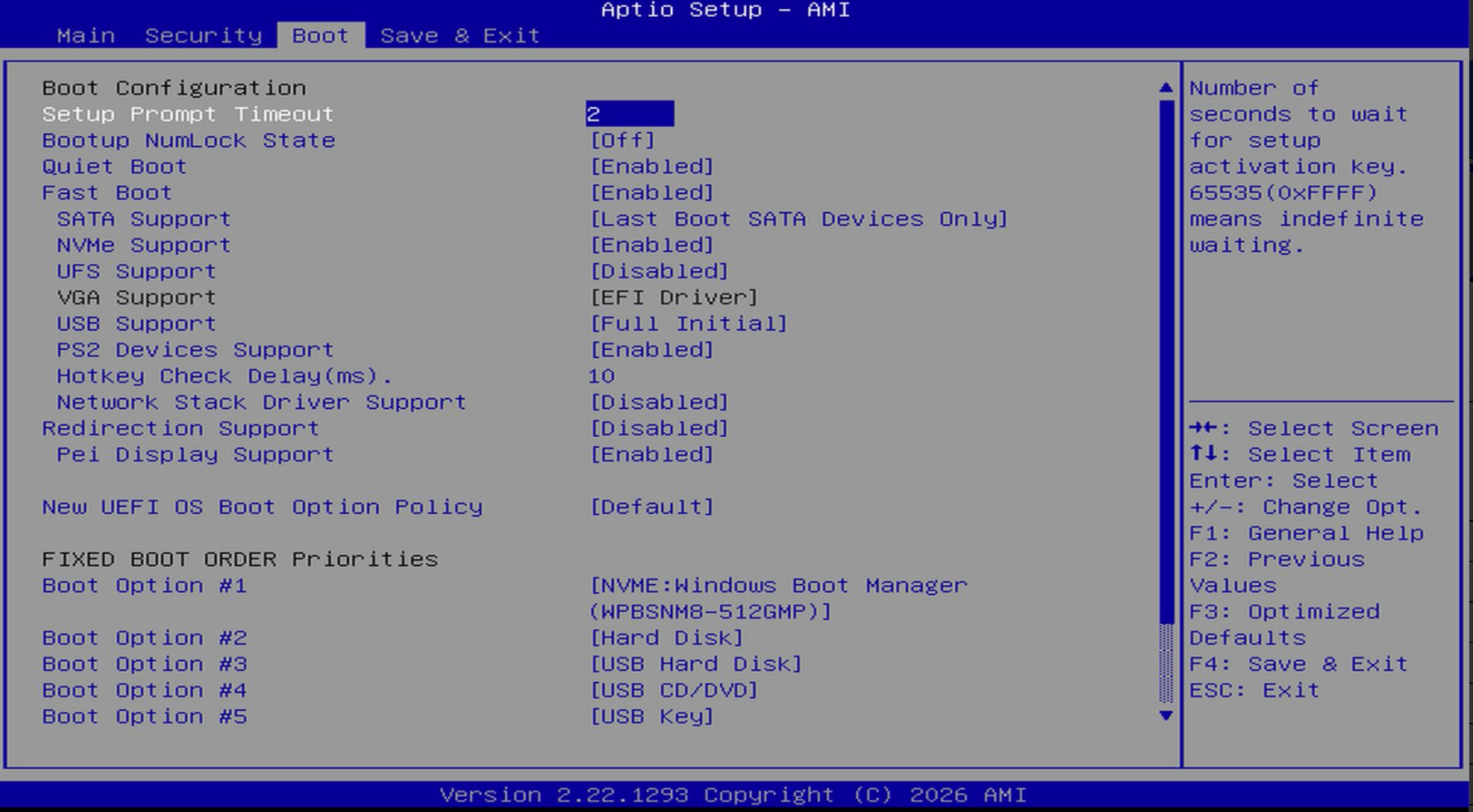

Boot Tab

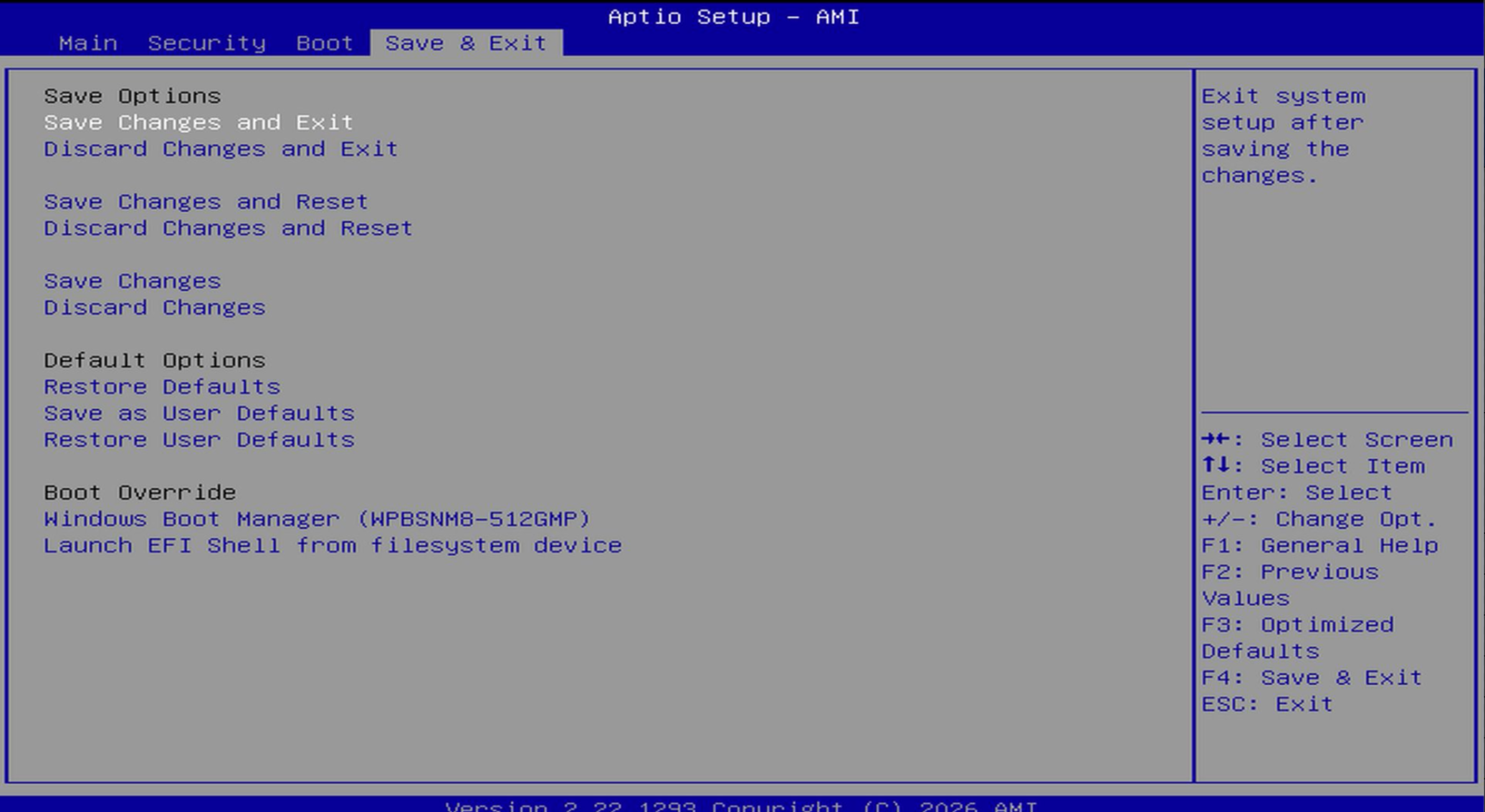

Save & Exit Tab

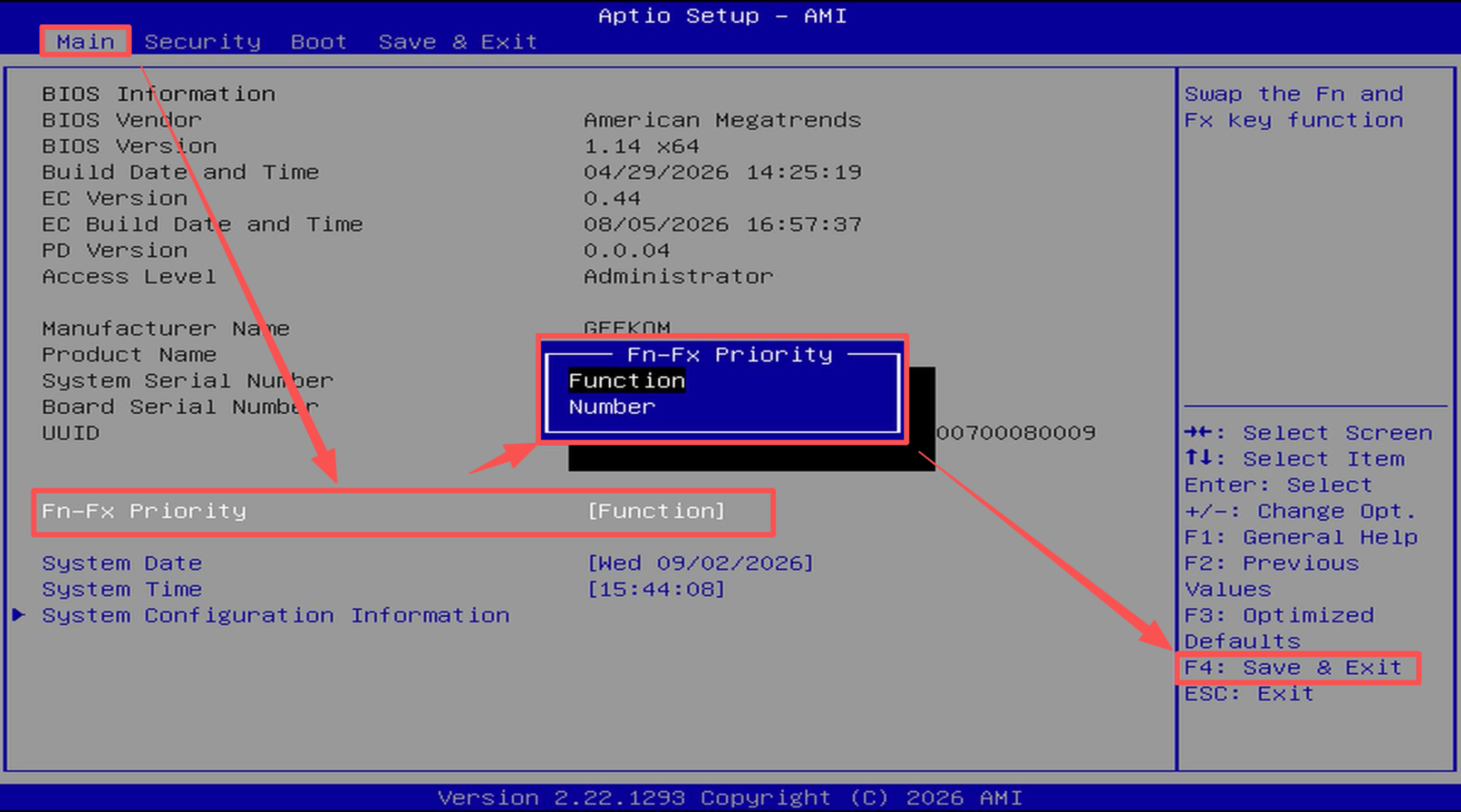

FN Hotkey setting
- Default: F1~F12 function keys
- Can be switched to hotkey‑only mode
Keyboard Backlight Timeout Setting
Not supported for now. Support will be added in future updates.
Region Detection Restriction
Not supported for now. Support will be added in future updates.
General Hardware Function Switches
Not supported for now. Support will be added in future updates.
ERP setting
Not supported for now. Support will be added in future updates.
Lid Open Power‑on
Not supported for now. Support will be added in future updates.
Operation Mode
Default: Normal
Can be changed via FN+P hotkey within OS.
Not configurable in BIOS. Support will be added in future updates.
Power‑on Auto Start
Default: Disable
Not supported by default. Support will be added in future updates.
RTC Wake Setting
Default: Disable
Not supported by default. Support will be added in future updates.
Side Port Switches
Default: All Enabled
Not supported by default. Support will be added in future updates.

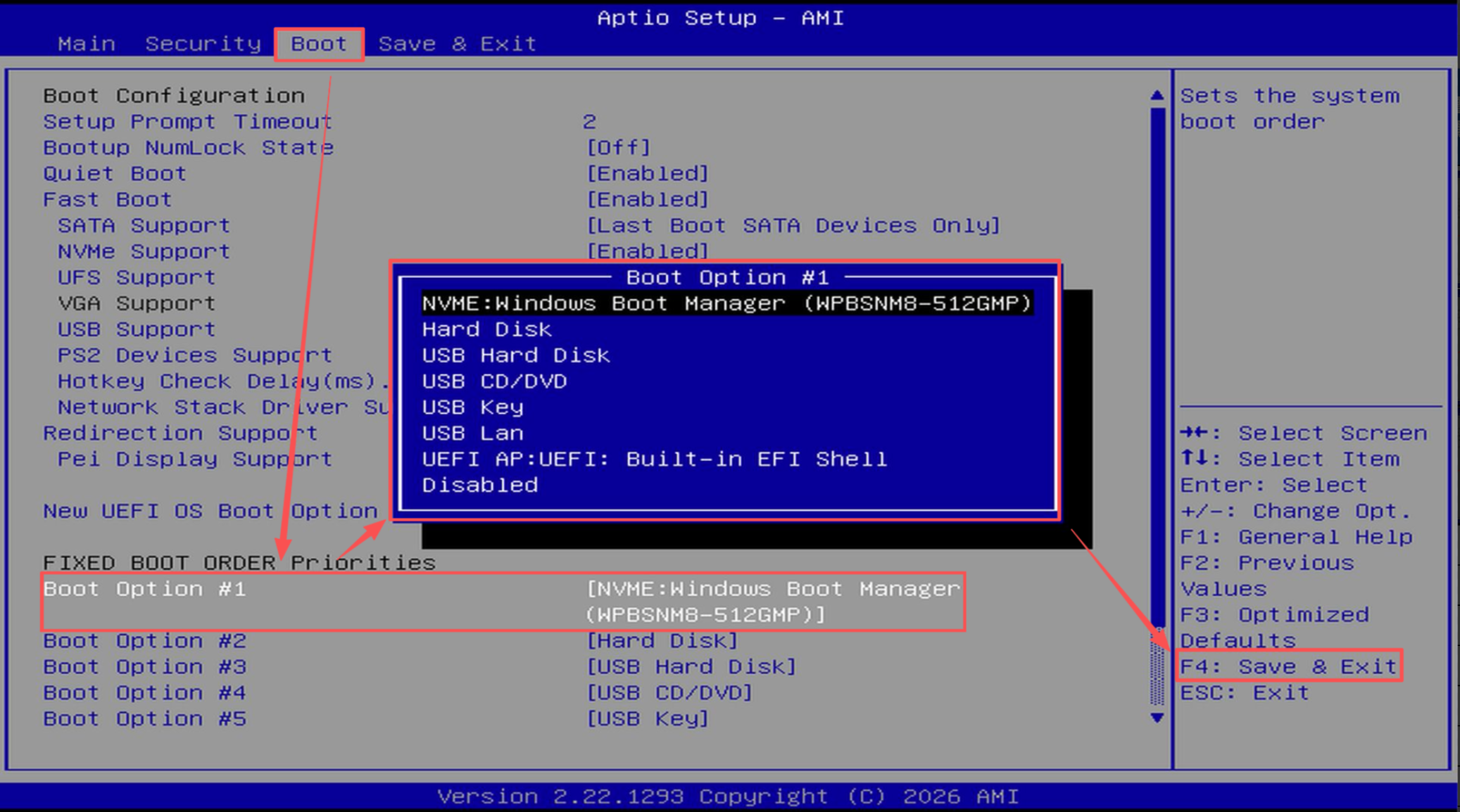

Boot Priority
Default: System Drive

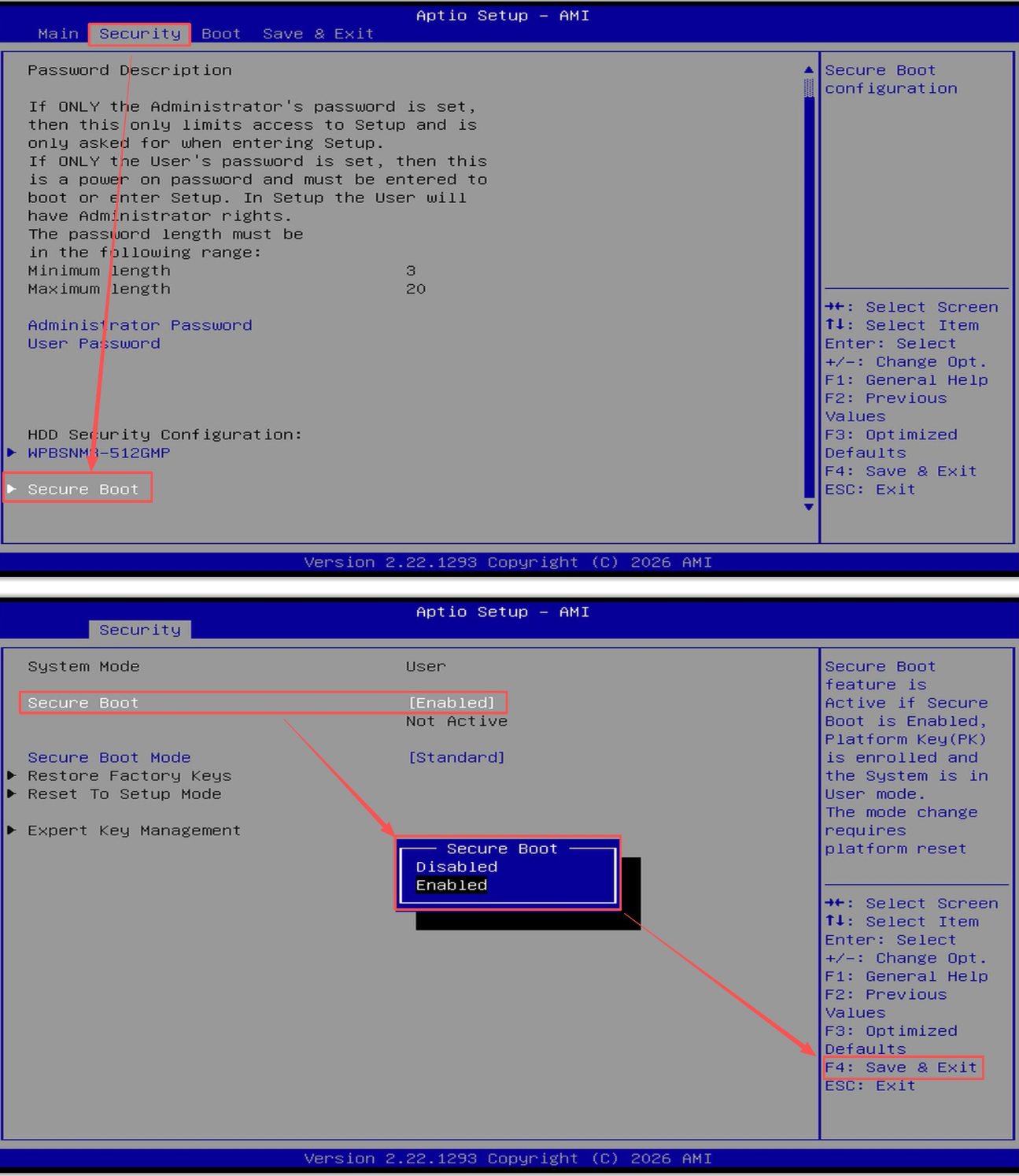

Secure Boot
Default: Enabled
Wake‑on‑LAN
Default: Enable
Fan Speed
Not adjustable in BIOS.
Fan speed can be adjusted via FN+P hotkey within OS, accompanied by corresponding CPU performance changes.
Default — Balanced Mode
Quiet Mode — Lower fan speed
Performance Mode — Higher fan speed

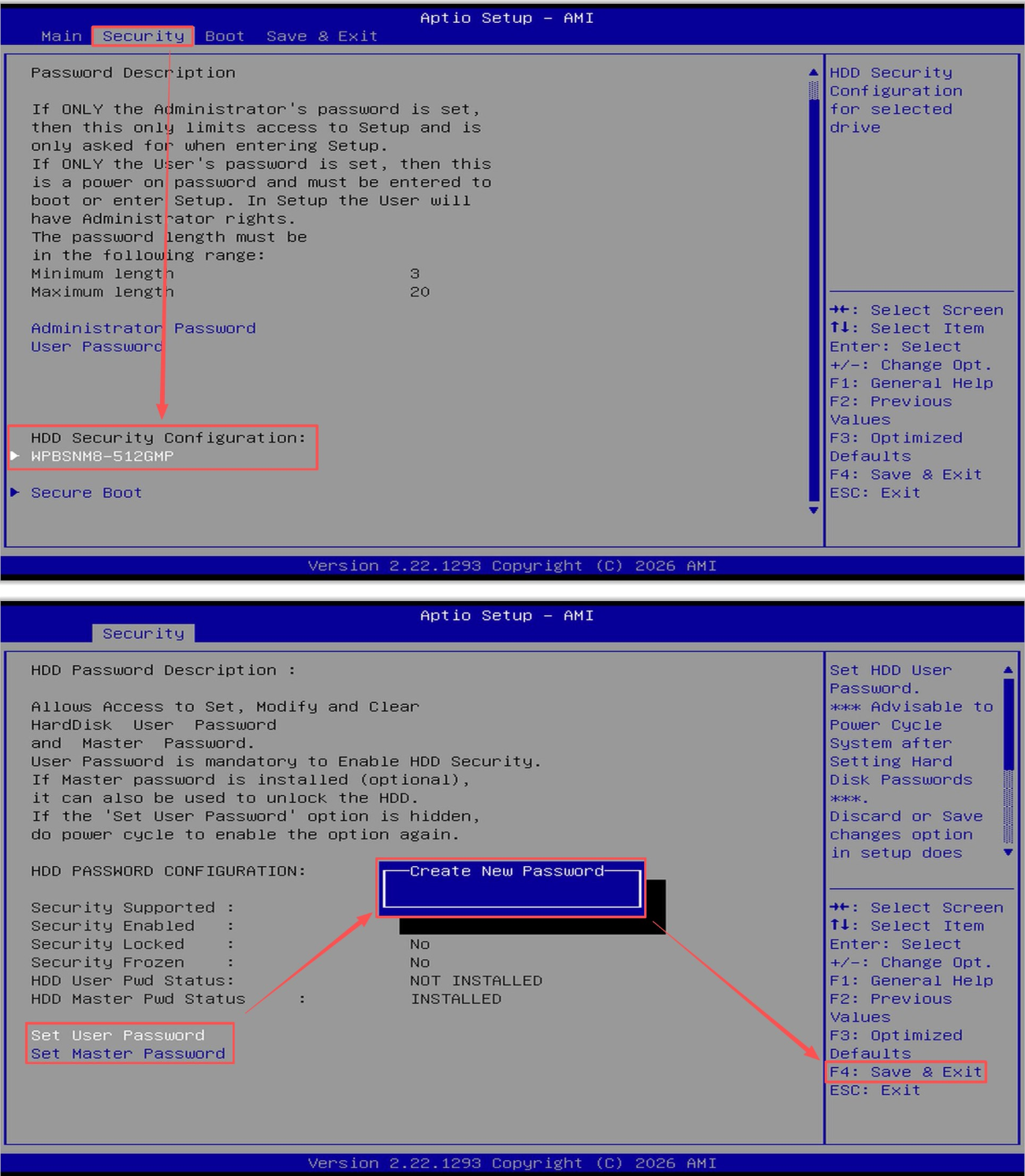

Hard Disk Password
Default: Disable

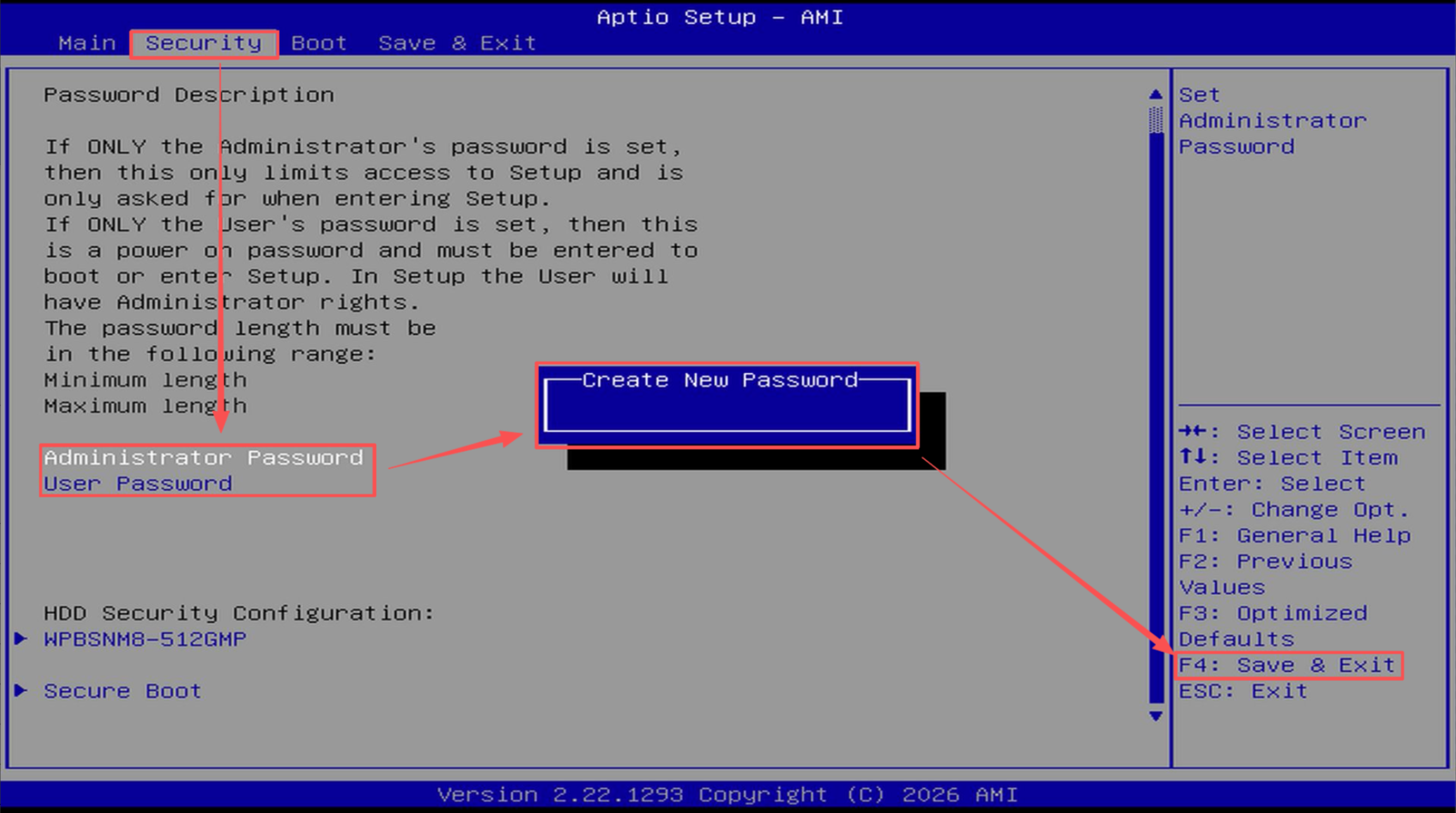

Set BIOS Password
Default: Disable

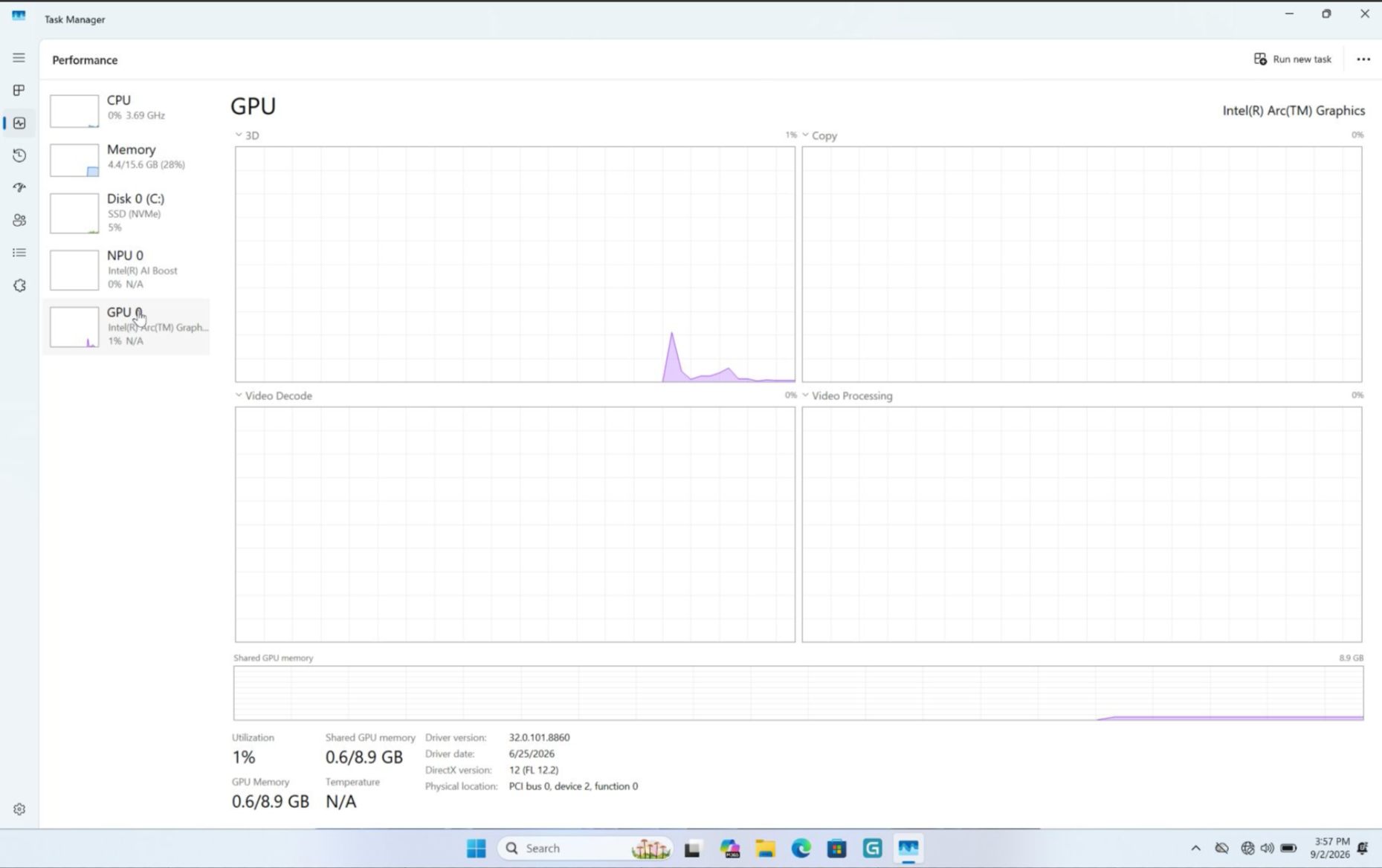

Default Shared Memory Size Setting
Auto‑allocate 8 GB with 16 GB system memory
