Article ID Code:GK-AUD-01
This article will help you quickly troubleshoot common audio issues when using a GEEKOM Mini PC, including no sound, incorrect device recognition, electrical noise, and system compatibility issues.
No sound when playing audio
Description
There is no sound when the device plays audio, and it is not muted.
Cause analysis
GEEKOM Mini PCs do not have built-in speakers. Sound usually needs to be output through an external device, such as speakers, monitor speakers, or headphones. Therefore, the issue is mostly related to software settings or the external device.
Possible causes and solutions
1. Loose connection or port issue
- Reconnect the audio cable and make sure the connection is secure
- Try a different audio cable or port
- If using a Bluetooth device:
-

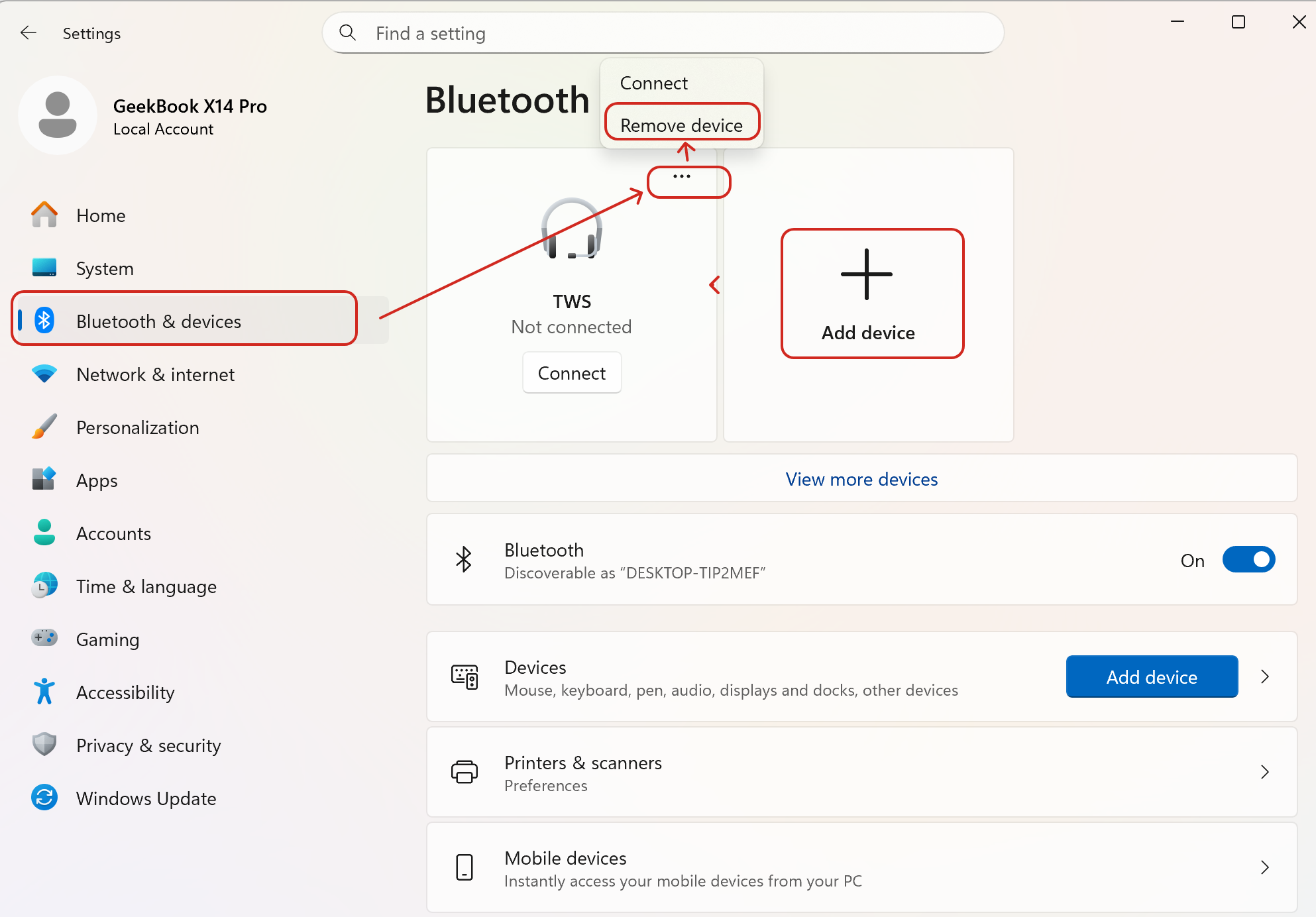

Remove the original device and pair it again (Settings > Bluetooth & devices > Remove device > Add again)
-
2. Incorrect system volume or default output device
Windows may automatically switch the audio output device. For example, it may not switch back to the speakers after headphones are unplugged.
Troubleshooting steps:

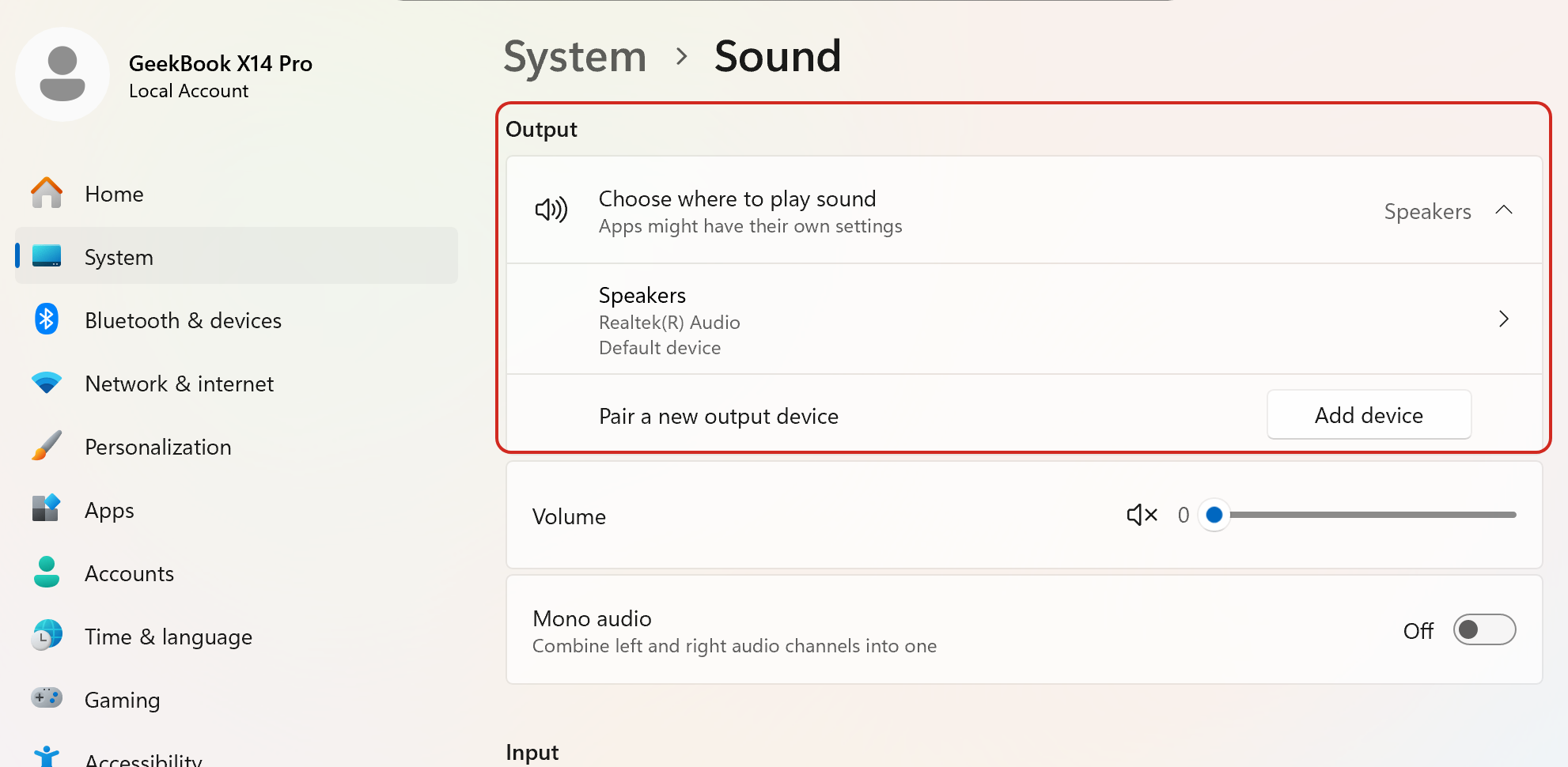

- Right-click the volume icon on the taskbar → “Sound settings”
-
Select the correct device under “Output device,” such as external speakers or headphones
-

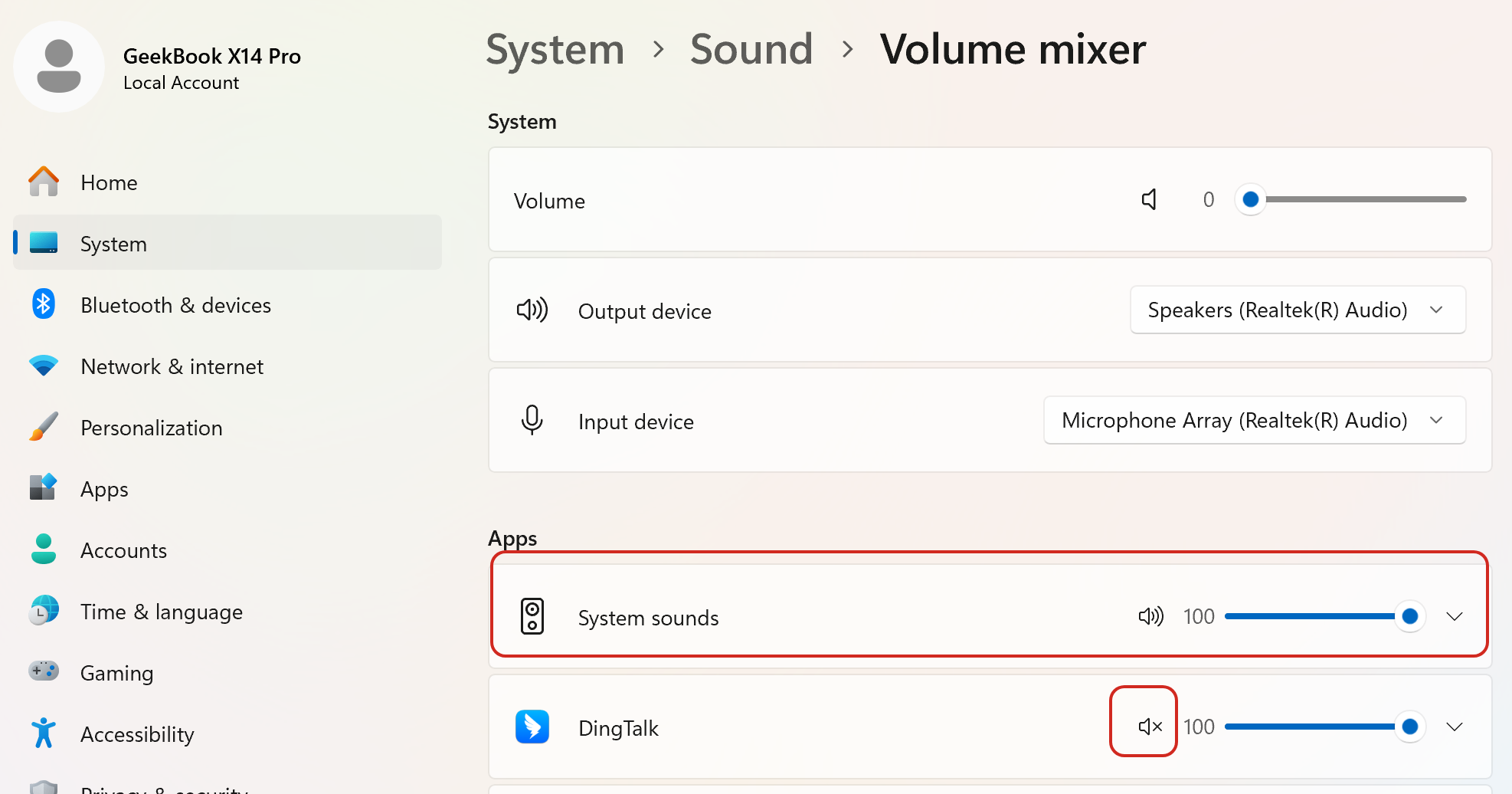

Check whether any application is muted in the “Volume mixer” or whether the overall volume is set too low
3. Audio driver or system service issue
Recommended action:

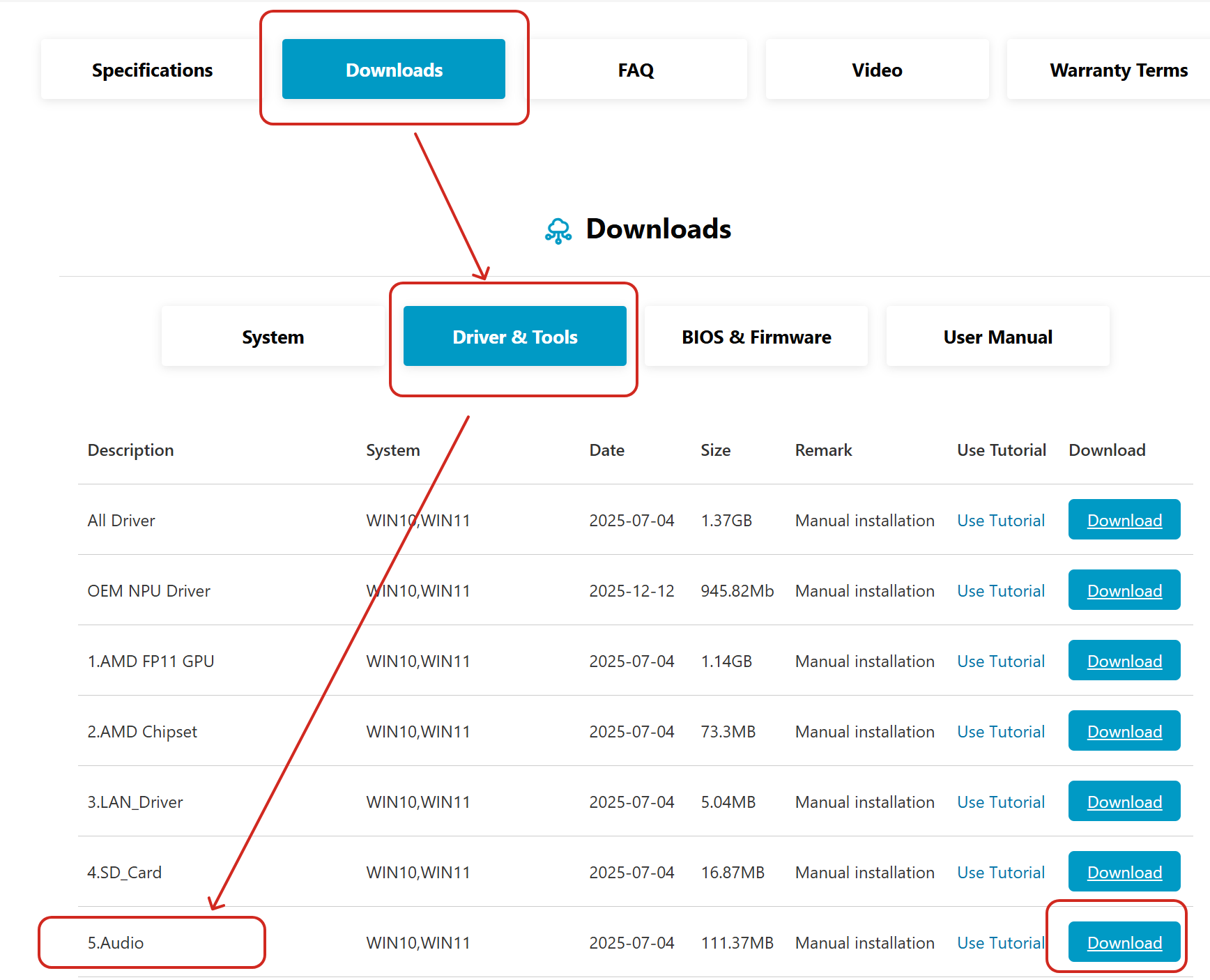

Go to the GEEKOM technical support website, Geekom Support, find the corresponding model, and click it to download the audio driver. For instructions on installing the driver, see: How to install Driver? – Geekom . Restart the system after updating.
Incorrect audio port recognition
Description
The system recognizes headphones/speakers as microphone input, or identifies the port type incorrectly, preventing normal use.
Solution 1: Modify settings through Realtek Console
There is no need to reinstall the system or driver. You can adjust the settings through the audio control software:
Steps:

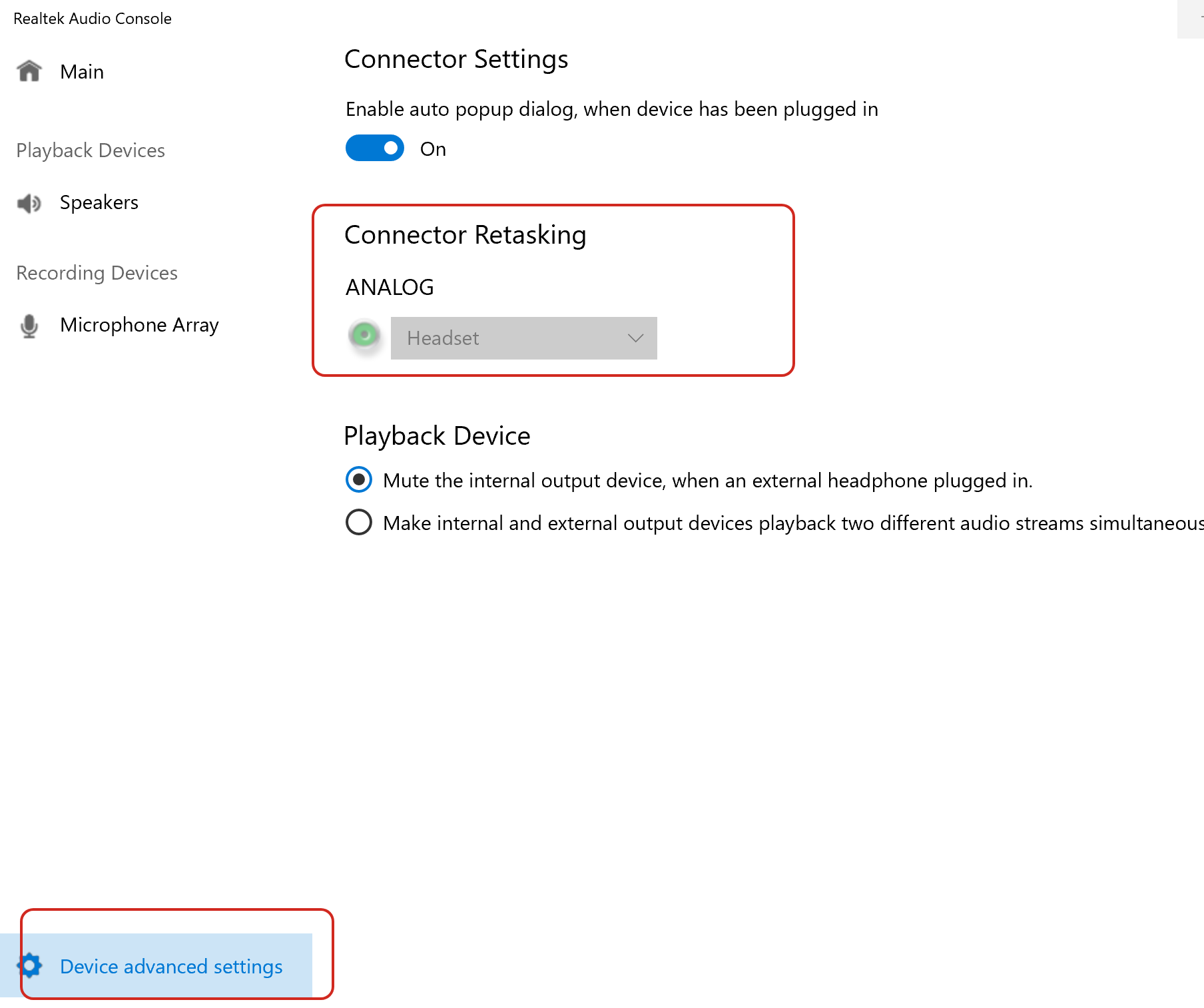

- Enter Realtek Audio Console in the Windows search bar
- Open the app and go to Device advanced settings
- Find the currently connected audio port
-
Manually specify the device type, such as:
- Headphone(耳机)
- Speaker Out(扬声器)
- Microphone(麦克风)
- Line In(线路输入)
Solution 2: Re-identify the device
If the device is still recognized incorrectly, try resetting it:
Steps:

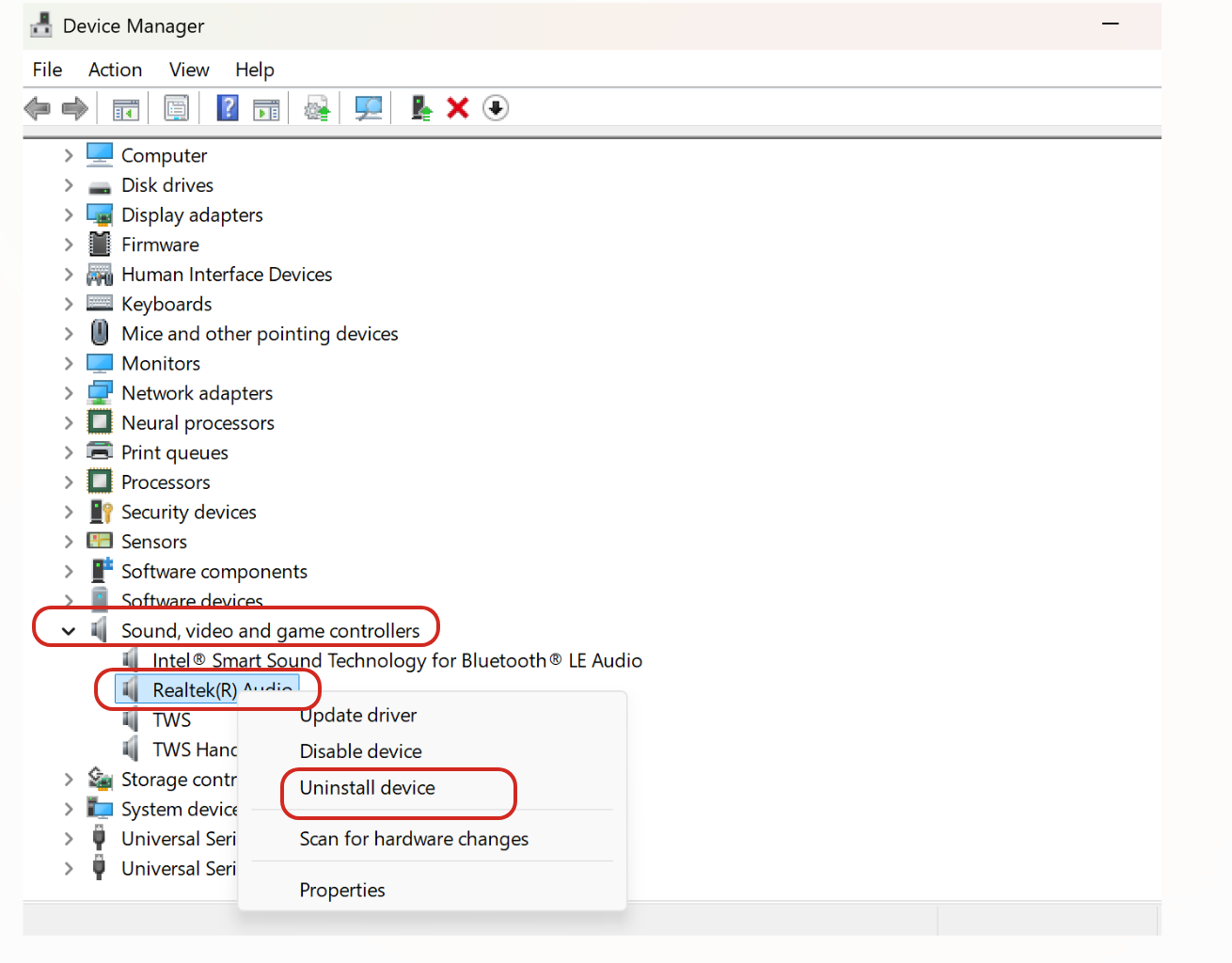

- Open “Device Manager”
- Expand “Sound, video and game controllers”
- Find:
- Realtek Audio (-->USB Audio Device)
- Right-click → Uninstall device
-
Restart the computer. The system will automatically recognize the device again
Noise when playing audio
Description
After headphones are connected, a crackling electrical interference sound occurs during audio playback. This is usually related to poor port contact or power interference.
Solution
1. Clean dust from the headphone port and headphone plug
Use a can of compressed air (or blow forcefully) to clean the inside of the 3.5 mm port. Dust, oxidation, and fibers are the most common causes.
2. Change the power strip adapter
If the external power supply voltage is unstable, it may interfere with the power adapter and produce ground loop noise. It is recommended to use a grounded (three-prong) outlet;
3. Test with a different audio device
Use another pair of wired headphones or switch to Bluetooth headphones to see whether the noise persists. If the noise disappears, the headphone plug may be faulty. If it does not disappear, the issue may be related to the system hardware.
System compatibility issues
Some devices may experience audio issues under Linux. We are unable to provide further technical support for compatibility issues caused by using Linux, because our primary adaptation focus is the Windows system.
If none of the above methods resolve your issue, please feel free to contact GEEKOM Customer Service for assistance.
